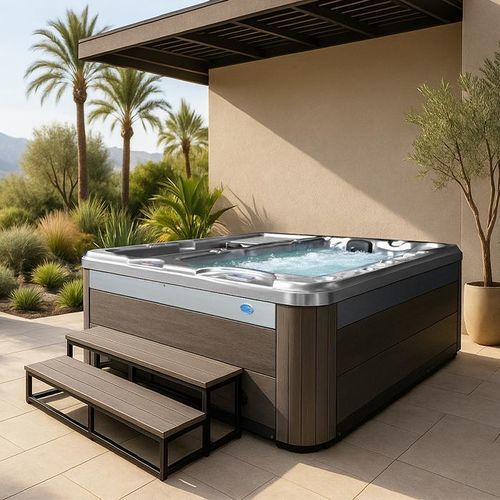

Above-ground hot tub DUAL ZONE

square2-persongalvanised steel

Product Overview
The Dual Zone Cold Plunge Spa is a combined chill-and-spa unit for up to 4 people. The chill side cools to 39°F and the spa side heats to 104°F. Key built-in elements include LED interior lighting, a skimmer filter and a total of 39 massage jets.

Key Features

• LED lights (interior multi-color)
• Skimmer filter (Bio-Clean)
• 39 total massage jets (2 chill / 37 spa)
• Day/Night environment imaging available

Hydro-Massage Therapy Benefits
Designed for progressive hydrotherapy routines, the unit supports recovery and wellness workflows used in commercial and institutional settings. Adjustable jet placement and seating configurations enable targeted pressure on specific muscle groups.

Design & Comfort

• Seating: form-fitted seating for hydrotherapy (Chill: 1, Spa: 3)
• Jets: strategically placed and adjustable to target pressure points
• Textured Black Cascade Pillows: Y-Pillows (both sides)

Performance & Equipment

• Pumps: dedicated jet pumps for circulation and mixing
• Eliminator High Performance™ Jet Pump (spa side): 1 x 6.0 BHP and 1 x 4.0 BHP
• Whisper Power Unit™ equipment with LED topside (both sides)
• WhisperHot™ Heating System (spa side): 5.5 kW heater
• 120V chiller unit with 24/7 circulation pump (chill side): Yes
• 1100 oval topside control: intuitive electronic spa control

Construction & Durability

• Fiber Steel: patented 5-layer laminate with reinforced steel and wood for shell strength
• Pressure-treated cabinet frame resistant to rot, corrosion and insects; galvanized steel fasteners and corner reinforcements
• Thermo-Layer™ side panels and floor insulation with polyethylene bottom liner

Comfort & Ambience

• Interior Lighting: 5 LED interior lights (multi-color)
• Sound System: optional Freedom Sound System with Bluetooth and Cube Speakers
• Spa Cover: Weather Shield cover available in Gray, Dark Brown or Black

Filtering & Sanitation

• Filter System (Bio-Clean): 15 sq. ft. filter (both sides)
• Optional Pure Cure UV Purification System

Options & Upgrades

• 2.0 Freedom Sound Stereo (optional)
• Pure Cure UV Purification System (optional)
• WiFi Module (optional)

Technical Specifications

• Seating Capacity — Chill: 1; Spa: 3
• Shell Color — Deluxe Colors
• Dimensions (W x L x H) — 93" x 93" x 34" (236 x 236 x 86 cm)
• Dry Weight — 900 lbs / 408 kg
• Filled Weight — 4071 lbs / 1847 kg
• Water Capacity — Chill Side: 130 gallons / 492 L; Spa Side: 250 gallons / 946 L
• Eliminator High Performance™ Jet Pump — Chill: - ; Spa: 1 x 6.0 BHP and 1 x 4.0 BHP
• Operating Voltage — 220V
• 120V Chiller Unit with 24/7 Circulation Pump — Chill: Yes; Spa: -
• Textured Black Cascade Pillows — Y-Pillows (both sides)
• Stainless Steel Jets (Exclusive velocity™) — Chill: 2; Spa: 37 (total 39 jets)
• Gate Valve(s) — Chill: Yes; Spa: Yes
• Air Venturi Valve — Chill: - ; Spa: Yes
• Filter System (Bio-Clean) — Chill: 15 Sq. Ft.; Spa: 15 Sq. Ft.
• LED Spa Lighting — Chill: (1) 5" Multi Color LED + (4) LED lights; Spa: (1) 5" Multi Color LED + (8) LED lights
• Whisper Power Unit™ (Equipment with LED Topside) — Yes (both sides)
• Thermo-Layer™ Side Panels and Floor Insulation with Polyethylene bottom liner — Yes (both sides)
• WhisperHot™ Heating System — Chill: - ; Spa: 5.5 kW Heater
• Pressure Treated Cabinet Frame — Yes (both sides)
• Ventilation Panels — Yes (both sides)
• Horizontal Cabinet Panel Colors — Cal Edge II™ Horizontal
• Cabinet Accessible Drain Valve — Yes (both sides)
• Spa Cover (Weather Shield) — 4" to 2.5" Black Vinyl (available colors: Gray, Dark Brown, Black)
• Warranty (Structural) — 10 Years
• Warranty (Finish/Shell Surface) — 7 Years
• Warranty (Equipment) — 5 Years
• Warranty (Plumbing) — 5 Years
• Warranty (Cabinet) — 5 Years
• Warranty (Cover) — 3 Years
