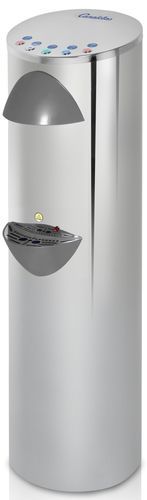

Cold water dispenser SERIE 9ID

for purified watersparkling watercarbonated water

Overview
Electronic operation, elegant design and optional sparkling water

• Designed for demanding commercial and institutional environments.
• Electronic control with illuminated push buttons in different colors for easy selection; available models include sparkling water.
• Improved hygiene: the water tap is covered and separated from the buttons to avoid contact by multiple users.
• Overflow tray full warning with locking system and audible alarm.
• Easy installation: requires only a water inlet and power outlet. Intended for use with cups.
• Cooling by stainless-steel coil for efficient and hygienic cooling.
• Fully manufactured in stainless steel.
• Adjustable water temperature via thermostat.
• Equipped with wheels for mobility.
• Optional cup holder attachable to the unit or wall.
• Installation of a purification filter is recommended to improve water quality.

Models

• M-99ID: Two buttons — cold and ambient water.
• M-992ID: Four buttons — cold, ambient, hot and hot-water safety.
• M-99GID: Three buttons — cold, ambient and sparkling water.
• M-992GID: Five buttons — cold, ambient, hot, hot-water safety and sparkling water. Gas models include a pressure gauge indicating remaining gas. Optional: reusable 2.5 kg gas cylinder (installed inside compartment) or single-use 0.6 kg cylinder.

Certifications

• Complies with electrical safety standards (CE).
• Complies with hygiene standards (EBWA).
• Complies with UNE 149101 standard.

Accessories and options

• Cup holder: vertical column design in stainless steel, attachable to Series 1, 3 and 7 coolers or to the wall. Large capacity: approx. 95 x 220 cc cups. Visual window for remaining cups.
• Purification filters (GAC FILTER): solid activated carbon, 1 µm filtration, approx. 5,000 litres capacity or estimated 1 year lifespan. Recommended annual replacement depending on water quality and use.
• UV disinfection filters (UV ULTRAVIOLET FILTER): 6 W power, sterilization capacity up to 4 litres/min, approximate lifespan 6,000 hours. Lamp replacement is simple.
• Optional gas cylinder: reusable 2.5 kg cylinder for installation inside the dedicated cavity.

Technical data
PUMPING COOLING POWER (W): 205
POWER CONSUMPTION (W): 100
CURRENT (230 V 50 Hz single-phase) (A): 0.5
COOLING CAPACITY (l/h): 18
TIME TO FILL A CUP (seconds): 4
OUTPUT TEMPERATURE (ºC) (Adjustable by thermostat): 4 - 11
ECO-FRIENDLY REFRIGERANT (CFC-free): R290
WEIGHT (kg): 18
COOLING BY STAINLESS-STEEL COIL: YES


Characteristics / Technical specifications

• Series: SERIE 9ID.
• Material: main body and components in stainless steel.
• Cooling system: stainless-steel coil.
• Cooling power: 205 W.
• Power consumption: 100 W.
• Current (230 V 50 Hz): 0.5 A.
• Cooling capacity: 18 l/h.
• Time to fill a cup: 4 seconds.
• Output temperature range: 4 - 11 ºC, adjustable by thermostat.
• Refrigerant: R290 (environmentally friendly, CFC-free).
• Approx. weight: 18 kg.
• Button options by model: cold, ambient, hot, hot-water safety and/or sparkling water.
• Gas models include pressure gauge; optional reusable 2.5 kg or disposable 0.6 kg gas cylinders.
• Hygiene: covered tap separated from buttons.
• Overflow tray lock and audible alarm when full.
• Mobility: fitted with wheels for movement.
• Installation: requires water inlet and electrical connection; designed for cup dispensing.
