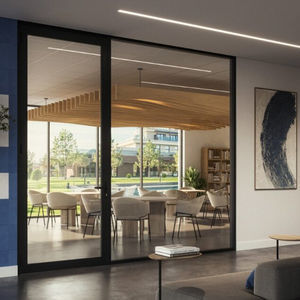

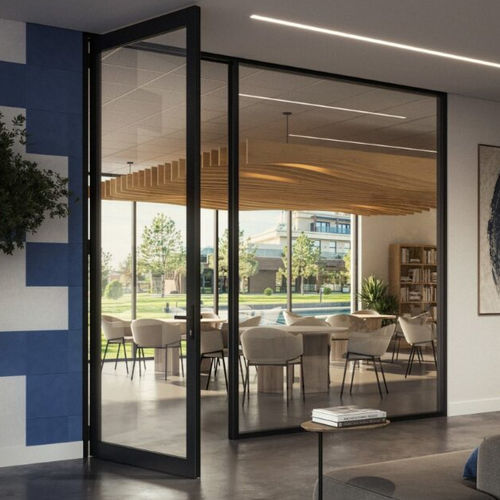

Pivot door SGS 225

entryaluminumpocket

Overview
The SGS 225 Pivot Door is a 46mm pocket glazed commercial door panel designed for flexibility, performance and ease of assembly. It suits a wide range of applications from architectural entry doors to commercial shopfronts and is compatible with a broad selection of architectural locks and furniture.

Key features

• 46mm door panel suitable for single and double glazing
• Narrow and wide stile options to accommodate different hardware
• Patented Click2Fit colour-coded roll-in wedge options for simple glazing installation
• Shallow and tall rail options
• Hinged and pivot door panel configurations
• Combined open-in and open-out sill extrusion options
• Quik spigot and glass support block to improve panel assembly and glazing
• Suitable for commercial and architectural applications

Availability
This product is currently only available in Queensland.

Caractéristiques / spécifications techniques

• Maximum panel height: 3000 mm
• Maximum panel width: 1200 mm
• Panel depth: 46 mm
• Glazing (single): 4 - 12 mm
• Glazing (double): 20 - 30 mm
• Glazing (thick): 14 - 19 mm
• Frame: 46mm door panel (pocket glazed)
• Configurations: single/double hinged, pivot; options for midrails, high/side lights and alternative thresholds
• Designed to accept a wide range of architectural locks, furniture and sub-frame solutions
