Sliding patio door ARTISAN 934

sliding and stackingaluminumaluminum frame

Overview

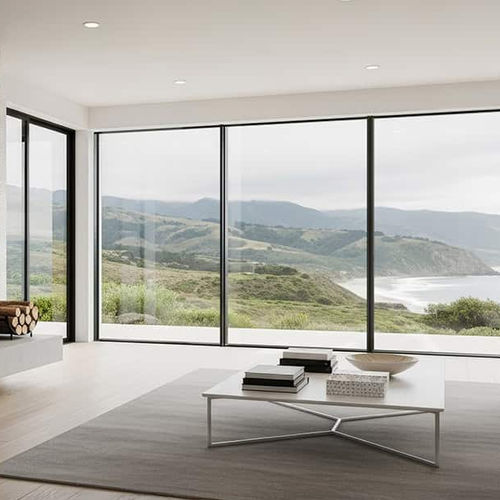

Inspired by European design, the Artisan Architectural 934 Panoramic Sliding Door combines a minimalist profile with engineering adapted for Australian conditions. The system offers floor-to-ceiling glazing, an optional handle-free aesthetic, recessed sill options with integrated drainage, and high-performance components. It is manufactured using LocAl® lower-carbon Australian-made aluminium extrusions.

Key features

• Australian designed and tested specifically for local conditions
• Manufactured from Australian-made LocAl® lower‑carbon aluminium extrusions
• Available in double and triple track outer frame options
• Handle-free system option for a clean, minimalist aesthetic
• Floor-to-ceiling glazing units to maximise transparency and visual appeal
• Easy roller maintenance — no need to remove door panels
• Integrated recessed sill with Aquago Drain System for effective water management
• Full sub‑frame available for flexible installation
• Wrap-around channel glazing with integral glass support blocks for streamlined manufacture and finish
• Corner entry configurations and traditional lock options supported

Performance & standards
The Artisan 934 is engineered to deliver high structural and water performance suitable for premium residential and architectural projects. It has been tested for compliance with AS2047 and includes WERS-rated configurations for residential and commercial applications.

Glazing and material options

• Single glazing suitability: 6–12 mm
• Double glazing suitability: 24–32 mm
• Uses lower-carbon LocAl® extrusions (Australian-made) as standard

Typical applications

• Premium residential sliding/panoramic door installations
• Architectural projects seeking large uninterrupted glazed openings
• Indoor-outdoor transitions where minimal sightlines and high transparency are desired

Technical specifications

• Maximum panel height: 3500 mm
• Maximum panel width: 2400 mm
• Maximum panel weight: 320 kg
• Maximum overall width (typical multi-panel): 6500 mm
• Frame dimensions: 2-track frame width 113 mm; 3-track frame width 169.5 mm
• Maximum product performance (indicative): SLS 4100 Pa; ULS 6000 Pa; Water 600 Pa
• Energy performance ranges (dependent on configuration and glazing): Uw 2.70–6.20; SHGC 0.20–0.71; Tvw 0.33–0.75
• Air infiltration range (product dependent): 0.2
• Glazing support: wrap-around channel glazing with integral glass support blocks
• Drainage: recessed sill with Aquago drain system
• Available configurations: multiple stacking and multi-track arrangements (2-track, 3-track, 4-track and multistack / bi-parting layouts, plus inside/outside corner options)
