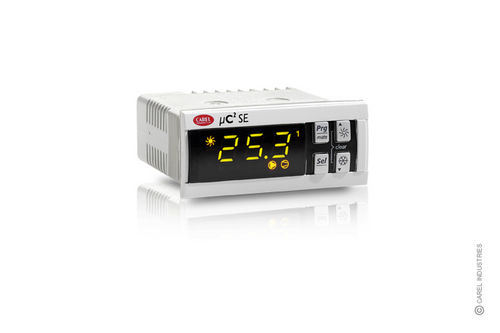

Air conditioner control µC² SE

µC2 represents CAREL's parametric solution for managing chillers/heat pumps with one and two circuits. All the µC2 SE series controllers in fact feature microprocessors with RISC technology and optional real time clock, ensuring top-of-the-range performance and user friendliness. The µC2 SE series is available in the panel mounting version, and the wiring is plug-in with Molex® connectors, reducing dimensions, simplifying and speeding up installation. µC2 SE can manage chiller/HP units (air to water, water to water), condensing units, air to air units (direct and reverse), rooftop units with temperature freecooling management. Maximum configuration up to four hermetic or two semi-hermetic compressors, maximum two circuits, with one electronic expansion valve per circuit. • Use of the electronic expansion valve allows suction superheat control, guaranteeing energy efficiency due to precise control with different outside climate and load conditions. • The wide range of user interfaces makes interaction with the µC sistema family controllers simple and effective, with a specific solution for all needs.
