Hot water radiator ANGERS

501 w...750 w751 w...1000 w1001 w...1500 w

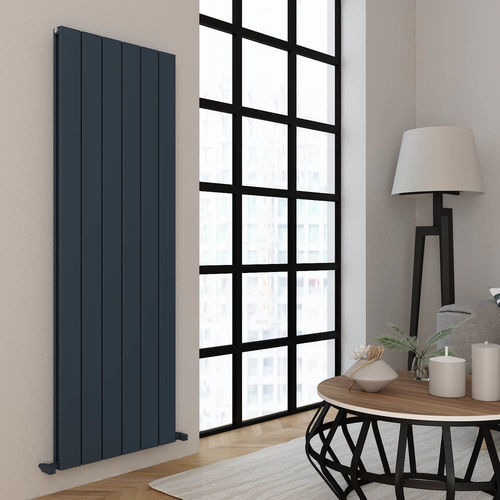

Aluminium vertical radiator from the Angers range by Carisa in anthracite finish, combining modern design and efficient heat output for refined interiors.

Key features:

• Construction: aluminium (other ranges available in steel and stainless steel).
• Fast, uniform heat distribution with high thermal output.
• Vertical, space-saving modern design.
• High energy efficiency and low consumption.
• Wall-mounted installation, compatible with most heating systems.
• Enhanced corrosion resistance for long service life.

General information (Single / Double):

• Single — Material: Aluminium; Warranty: 5 years; Connection: 1/2"; Section width: 95 mm; Section depth: 43 mm; Pipe centre: (Width + 90).
• Double — Material: Aluminium; Warranty: 5 years; Connection: 1/2"; Section width: 95 mm; Section depth: 61 mm; Pipe centre: (Width + 90).

Models and performance (examples):

• Single — 1800 x 0295: Sections 3 — Pipe centre 0385 — Weight 5.8 kg — Watt T50: 574 W
• Single — 1800 x 0395: Sections 4 — Pipe centre 0485 — Weight 7.6 kg — Watt T50: 766 W
• Single — 1800 x 0495: Sections 5 — Pipe centre 0585 — Weight 9.4 kg — Watt T50: 957 W
• Single — 1800 x 0595: Sections 6 — Pipe centre 0685 — Weight 11.28 kg — Watt T50: 1148 W
• Double — 1800 x 0295: Sections 3 — Pipe centre 0385 — Weight 9 kg — Watt T50: 806 W
• Double — 1800 x 0395: Sections 4 — Pipe centre 0485 — Weight 11.9 kg — Watt T50: 1074 W
• Double — 1800 x 0495: Sections 5 — Pipe centre 0585 — Weight 14.8 kg — Watt T50: 1343 W
• Double — 1800 x 0595: Sections 6 — Pipe centre 0685 — Weight 17.7 kg — Watt T50: 1611 W

Technical datasheet:

• Complete technical datasheet available (see associated documents).

Technical specifications:

• Colour: Anthracite
• Material: Aluminium
• Maximum working pressure: 10 bar
• Connections: standard 1/2" (two sides, top/bottom, diagonal)
• Section width: 95 mm
• Section depth (general): 86 mm (see product sheet for exact values by configuration)
• Warranty: 5 years
• Maximum operating temperature: 95 °C
