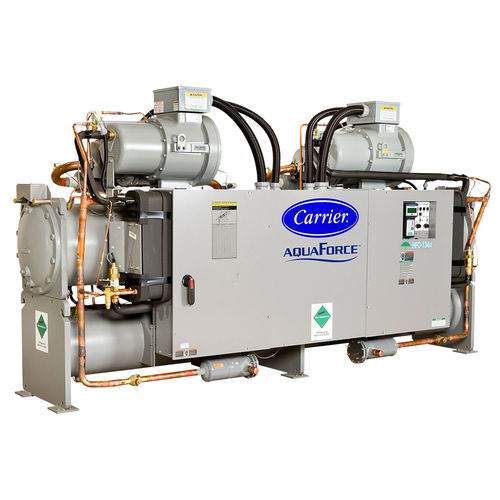

Water-cooled chiller AQUAFORCE® 30HX

floor-mountedcompactinside

The 30HX units are high-efficiency, indoor water-cooled or condenserless chillers. The units have a quiet, low-vibration design featuring screw compressors. The 30HX chillers are compact enough to fit through a standard door, making them great replacement units. Water-cooled chillers within the scope of the AHRI WCCL certification program are certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org. Condenserless versions of these units and 50 Hz. units below 200 Tons are not certified under the AHRI certification program. Performance Features • Chlorine-free R-513A refrigerant • Low energy consumption during part load and full load operation • 208/230v, 460v, 575v operational voltages available • Wye-delta start is standard on 208/230v and 60Hz units (factory-installed option for all other units) • Leaving-fluid temperature directly controlled to within 0.5°F (0.3°C) • Entering-fluid temperature continuously monitored to detect flow or load changes • Compatible with Carrier Comfort Network® (CCN) communication link • Heat recovery capability up to 135°F (57.22°C) Reliability Features • Low voltage control circuits • Short cycle protection • Dual chiller controll • Temperature reset from return fluid • Chilled water flow switch • Electronic refrigerant gauges Maintenance Features • Hermetic twin screw compressors • Mechanically cleanable condenser and evaporator (30HXC)| • Alarm contacts • Filter drier • Moisture indicating sight glass
