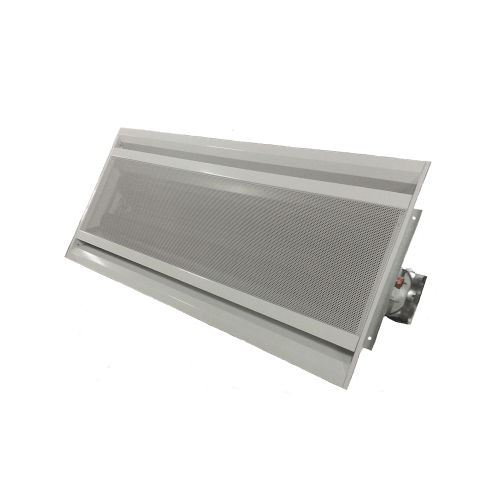

Active chilled beam ACTIVAIR™ 36IB

36IBA - Base Unit 36IBAC - All-Way Discharge 36IBAN - 1-Way Discharge Narrow 36IBAS - 1-Way Discharge Square Carrier induction beam units offer: Induction beams are extremely flexible and enhance the savings and effectiveness of primary air systems such as those using dedicated outside air. When using our induction beams, the primary air system, which includes the dedicated outside air unit and the supply and exhaust ductwork, can be sized to handle only the required ventilation air. Performance Features • 11-476 Cfm primary air for ventilation • Low sound • ETL independently tested and verified • Two or four pipe operation • Provides both sensible and latent cooling with a drain pan as standard • Compatible with chilled water temperatures down to 42 F • Coil capacities up to 22,000 BTUH cooling and 56,000 BTUH heating Reliability Features • No moving parts • No electrical components Maintenance Features • Hinged bottom panel provides easy access for cleaning Installation Features • No electrical connections required • Smaller duct requirements • Flush mount unit is designed for standard 2'x4' drop ceiling Standard Warranty • One-Year parts Factory-Installed Options • Induction nozzles available in various sizes to match capacity requirements • Various grille types and optional colors available • Hot water heating coil available • Exterior unit insulation is available for applications with low temperature primary air or chilled water • Height extension collars available to facilitate gravity drainage from the drain pan
