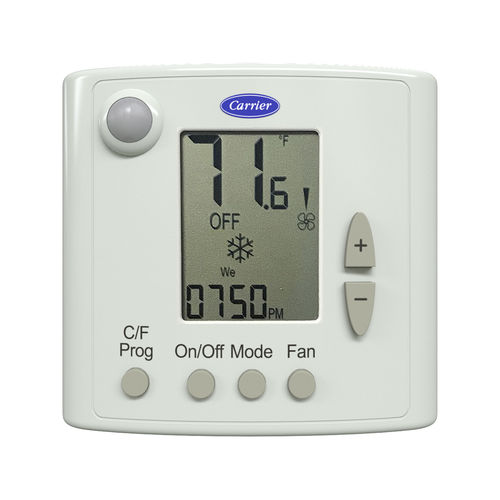

Electronic thermostat COMFORTVU™ TB-C

programmablefor heatingfor air conditioning

Carrier’s ComfortVu™ BACnet thermostats offer local control of a building’s heating, ventilating and air-conditioning (HVAC) system as well as remote control from any BACnet-compliant building management system (BMS), including Carrier’s i-Vu® building automation system. • Large, backlit LCD display • Touchscreen occupant controls • Support for Celcius or Fahrenheit • BACnet MS/TP port for easy integration with i-Vu system or any BACnet-compliant BMS • On-board DIP switches to configure eguipment type and sequence of operation • 2 universal inputs, 2 analog outputs, and 6 digital outputs • Available in two 120/220 Vac models (international only, not UL approved): Temperature only (TB-C) Temperature/Humidity/PIR Motion (TB-HM-C) Supported Functions • Manage 7-day schedules via the thermostat • Manage setpoints, occupancy status, fan speed, and heating/cooling mode via the thermostat or BACnet BMS • Support for Title 24 demand response/economizer FDD and ECC2015 economizer FDD when connected to a BMS Equipment Compatibility • Rooftop Units • Heat Pumps • Fan Coils • Exhaust Fans • Unit Heaters Supported Applications (depends on available I/0) • Up to 3 stages of heat / 2 stages of cool • 2 pipe / 4 pipe cooling / heating valves (0-10V) • Up to 3 fan speeds • VFD (0-10V) • Economizer (open/close) • Reversing valve • Humidifier (0-10V) / Reheat (dehumidity) Power Requirements - 85-240 Vac line voltage: 1.5VA unit, 920 VA full load Communication - BACnet MS/TP with baud rates up to 76.8 kbps, detected and set automatically by the BACnet Thermostat. Max 127 devices.
