Built-in heating controller RBC-AMS41UL

wall-mountedfor heating and coolingremote

Overview

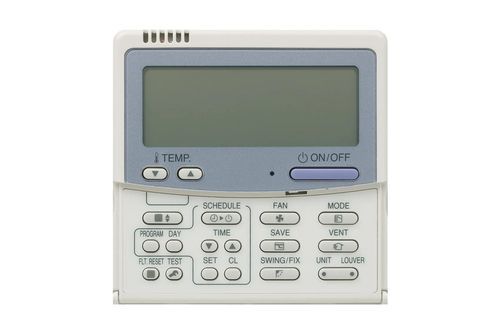

The Toshiba Carrier RBC-AMS41UL is a wall-mounted programmable wired remote controller designed to provide centralized temperature and mode control for Toshiba Carrier VRF indoor units in commercial and multi-zone installations.

Applications & benefits

• Centralized management: Simplifies operation by allowing one controller to manage multiple indoor units in offices, retail or light-industrial zones.
• Consistent comfort: Scheduling and multiple modes help maintain stable indoor conditions across zones while supporting energy-conscious operation.
• Controlled access: Key lock prevents unauthorized adjustments in shared or public spaces.

Key features

• Multi‑unit control: Controls up to 8 indoor units from a single wall-mounted interface.
• Operating modes: Supports Heating, Cooling, Dry and Fan-only modes.
• Fan control: Multiple fan speeds including Auto.
• Programmable scheduling: Built-in schedule timer for occupancy-based operation.
• User lockout: Key lock to restrict changes by unauthorized users.

Technical specifications

• Manufacturer: Toshiba Carrier
• Model: RBC-AMS41UL
• Product type: Wall-mounted programmable wired remote controller (thermostat)
• Application: For Toshiba Carrier VRF indoor units, commercial multi-zone environments
• Max controlled indoor units: Up to 8 units
• Operating modes: Heating / Cooling / Dry / Fan
• Fan control: Multiple speeds including Auto
• Scheduling: Built-in programmable schedule timer
• Security: Key lock / user lockout
• Mounting: Wall-mounted

Installation & compatibility

• Designed to integrate with Toshiba Carrier VRF systems; follow manufacturer wiring diagrams for correct multi-unit grouping.
• Suitable for commercial zones requiring centralized setpoint and scheduling control.
• Order with model reference RBC-AMS41UL and confirm compatibility with indoor unit series and system controller.
