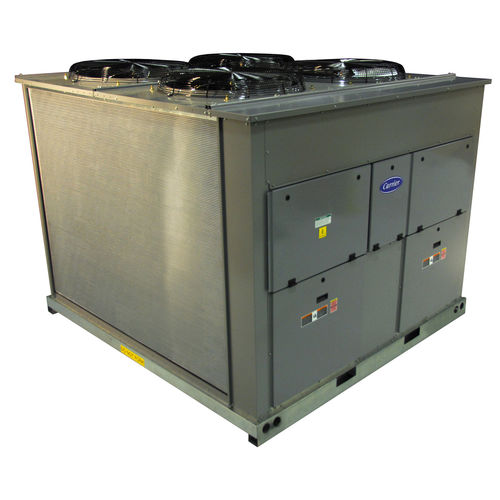

Commercial condensing unit GEMINI® 38APD
industrialair-cooledmono-split

commercial condensing unit
commercial condensing unit
commercial condensing unit
Add to favorites
Compare this product


Characteristics

Sector
commercial, industrial
Cooling system
air-cooled
Type
mono-split

Description

with Puron® Refrigerant (R-410A) 25 to 130 Nominal Tons Gemini® Select 38 Series outdoor condensing units feature two independent refrigerant circuits on all sizes. Each unit has its own highly efficient hermetic scroll compressor(s). All units are factory-wired and easily connected by refrigerant lines and control wiring to the matching Carrier indoor air-handling units. Various combinations of condensing units with air handlers provide packages to cover a wide range of commercial cooling solutions. Low roof-load weight distribution and weatherproof construction make these condensing units an excellent selection for rooftop or on-the-ground installations on commercial and industrial air conditioning applications. Performance Features Condensing unit EERs up to 11.5 and IPLV up to 16.2 Unit performance rated in accordance with AHRI Standard 365 Full capacity range dual-circuit units (25-130 sizes) Hermetic scroll compressors with option for Digital compressor for superior part-load performance Novation® microchannel heat exchanger (MCHX) condenser coils with option for E-coated Novation condenser coils Compressor with neoprene isolators and oil heater(s) Reliability Features Galvanized steel cabinet, bonderized and finished with baked enamel, 500-hour salt-spray test High and low-pressure protection Compressor overload protection Loss of charge and low suction superheat protection Self contained 24-v CCN (Carrier Comfort Network) controls including transformer Low ambient head pressure control UL, CSA, and ETL approved Maintenance Features Oil-level sight glass, filter driers, liquid line solenoid valve Access panel accessibility to compressor and control box
