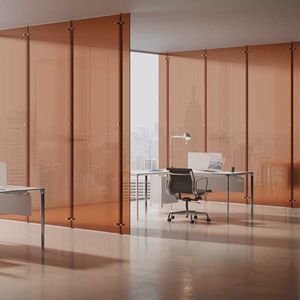

Acoustic glass panel STACKWALL FRAMELESS

temperedlaminatedtransparent

Top-hung glass panels that are captured by top and bottom rails and travel individually along a suspended track and stack and store into a designated parking area. Top tracks can be concealed into the ceiling for minimal look with the advantage of glass panels completely disappear from the opening or be left exposed. Specifications VALUE-ADDED BENEFITS Efficient hardware make system easy to operate Easy to install with self-correcting components Wide-range of acoustic and privacy options at all seam and panel connections Minimal look with thin, aluminum profile Pre-engineered top structure support solution for taller spaces above finish ceiling (additional cost) System durability and long-term integrit Turnkey integrated project service APPLICATIONS Space division between offices, conference rooms or flex-space. CONFIGURATIONS Straight runs, corner applications, custom angles, multiple parking areas, parallel and fully concealed parking areas, mid-run access doors, fixed panels for wide openings FUNCTION Individually movable glass panels divide and open space. Acoustical Rating:Low-to-moderate due to panel gaps.Transparent or writable glass. GLASS TYPES Laminated, tempered monolithic, tempered laminated. GLASS FINISHES CARVART laminated transparent glass design options available: 01 Core, 02 Color, 03 Pattern, 04 Metallic, 05 Textile, 08 Gradient and 10 Covert. SURFACES Smooth glass. Etched glass. GLASS THICKNESS Refer to local code and structural requirements Accommodates 3/8" nominal up to 13/16" nominal. HARDWARE DIMENSIONS Aluminum top track: 2-3/4" wide x 3" high nominal. Top/Bottom finish rails: 1-1/4” deep x 2-3/8” high.
