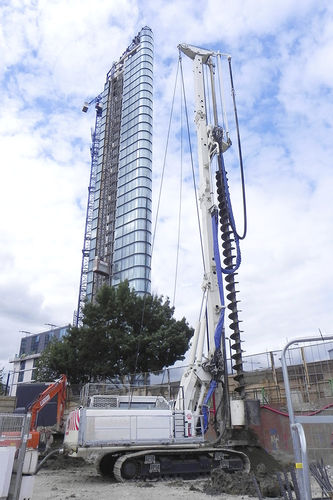

Diesel engine drilling rig B360 XP – CFA rotaryconstructionpiling
Add to favorites
Compare this product
Characteristics
- Operation
- diesel engine
- Type
- rotary
- Other characteristics
- construction, piling, crawler
- Drilling diameter
1,200 mm
(47 in)- Drilling depth
34 m/s²
(111.55 ft/s²)
Description
Max depth C.F.A.34 m
Max diameter C.F.A.1200 mm
Engine power403 kW
Width of crawler3500/5000 mm
Shoes width1000 mm
Main winch
Line pull360 kN
Auxiliary winch
Line pull140 kN
Crowd – ram
Extraction force400 kN
Crowd force250 kN
Stroke7000 mm
Crowd – winch
Extraction force600 kN
Crowd force600 kN
Stroke19000 mm
Rotary head
Torque400 kNm
Drilling speed25 rpm
Weight
Weight in working condition115 t
