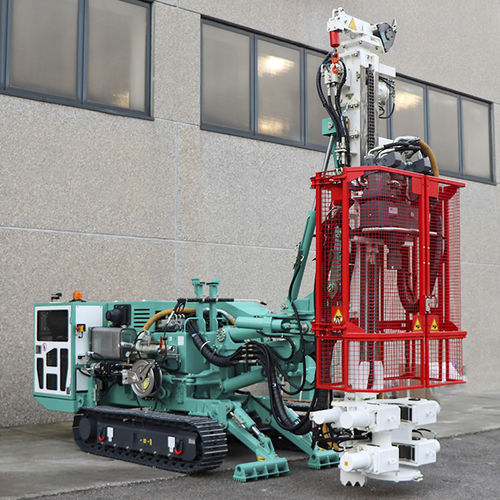

Diesel engine drilling rig C5 XP-2

rotaryconstructioncrawler

The new C5XP-2 represents the joint venture between over 50 years of Casagrande’s experience in the field of drilling, together with the innovation a feature, which characterized the long history of company’s successes The C5R XP-2 is the multipurpose drill rig designed by Casagrande to perform projects in the field of foundation drilling, specifi cally for constructing anchors and micropiles The SPM – Smart Power Management – and the full load sensing hydraulic system allow an intelligent engine power management to improve performance of the machinery and reduce fuel consumption. The crawler rig is equipped with modular mast, articulation with “Front The Wall” joint. It is such small and easy-to-use so that it can work in narrow spaces such as tunnels or inside buildings. The new C5XP-2 is a compact crawler drill rig, easy to truck and maneuver thanks to the ergonomic remote control. Engine power - 111 Kw - 149 hp Width of crawler - 1800 mm - 70.8 in MAST - - Stroke of rotary head - 1640 / 3640 mm - 64.5 / 143.3 in Extraction force - 50 kN - 11,240 lbf Crowd force - 50 kN - 11,240 lbf CLAMPS - - Diameters - 40 ÷ 254 mm - 1.6 ÷ 10 in ROTARY HEAD - - Torque - 15100 Nm - 11,210 lb/ft Max. Drilling speed - 400 rpm - 400 rpm WEIGHT - - Weight in working condition - 9000 kg - 19,840 lbs
