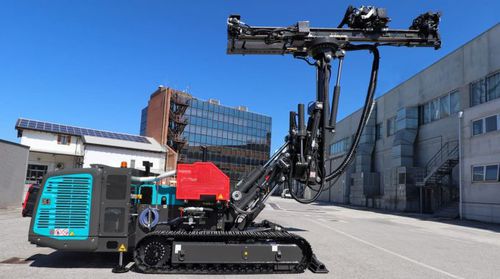

Diesel engine drilling rig C6T XP-2

rotarydown-the-holecrawler

Diesel engine Stage V - Tier 4 CUMMINS B 4.5 Power @ 2200 rpm 140 kW Exhaust emission standard EU Stage V - US EPA Tier 4 Urea tank capacity 56 l Diesel engine Stage IIIA - Tier 3 CUMMINS QSB 4.5 Power @ 2200 rpm 119 kW Exhaust emission standard EU Stage IIIA - US EPA Tier 3 Diesel tank capacity 260 l Rated power @ 1480 rpm 75 / 90 kW Hydraulic power 100 kW Hydraulic pressure 350 bar Main pump fl ow rate 1 x 319 l/min + 1 x 99 l/min (option) Hydraulic oil tank capacity 490 l Undercarriage width 2250 mm Width of triple grouser track shoes 400 mm Overall tracks length 2630 mm Travel speed 0 - 2,2 km/h Traction force - nominal 129 kN
