Compact tracked loader TR270B

Overview

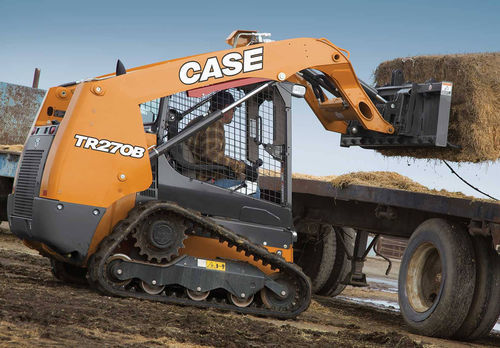

The CASE TR270B is a B‑Series compact track loader engineered for turf-sensitive and general earthmoving applications. At 74 hp (55 kW) and a transport weight of 3615 kg, it delivers low ground pressure, straightforward transportability, intuitive controls and an 8‑inch LCD multifunction display. The cab is among the industry’s widest to support extended full‑day operation. Powered by an FPT Stage V diesel engine, the TR270B balances performance and operator comfort for a wide range of jobsite tasks.

Key specifications

• Rated Operating Capacity (ROC) at 50%: 1225 kg
• Power: 74 hp (55 kW)

Features

• Transport weight: 3615 kg
• Low ground pressure for turf‑friendly operation
• 8‑inch LCD multi‑function display with intuitive controls
• One of the industry’s widest, comfort‑focused cabs for all‑day operation
• FPT Stage V diesel engine (74 hp / 55 kW)

Compatible attachments (examples)

• Asphalt float — ST200; available for SR175B up to TV450B with standard flow; 1900 mm width
• Backhoe — buckets: 300–800 mm; available with mechanical or hydraulic side shift block
• Broom bucket — various sizes; optional dust suppression kit; standard polypropylene bristles; suitable for skid steer & compact track loader range
• Cement mixer — capacities 150–450 L; available for SR160B up to TV450B; Hardox helix; central or side discharge

Downloads
Brochure available for the B‑Series Compact Track Loaders (reference: B‑Series Compact Track Loaders, 3.64 MB).

Technical specifications

• Model: TR270B
• Rated Operating Capacity (ROC) at 50%: 1225 kg
• Engine power: 74 hp (55 kW); FPT Stage V diesel
• Transport weight: 3615 kg
• Display: 8‑inch LCD multi‑function display
• Cab: industry‑wide, comfort‑focused design for extended operation
• Designed for low ground pressure to protect existing turf
• Compatible with a wide range of attachments (asphalt float ST200, backhoe with multiple bucket sizes, broom bucket, cement mixer, etc.)
