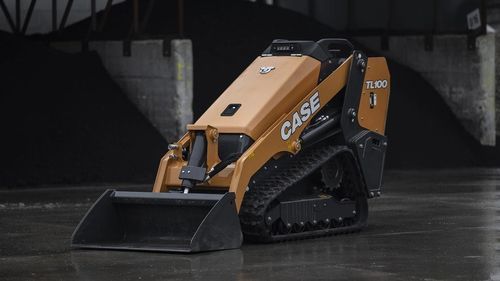

Compact tracked loader TL100

Overview
The Mini track loader TL100 is engineered for compact tracked operations requiring precise maneuvering, stable lifting and effective digging. It is powered by a Kubota D1305-E4B engine delivering 24.8 hp (18.5 kW) gross and 24 hp (18 kW) net. The TL100 uses a hydrostatic transmission for smooth control and reaches a maximum travel speed of 7.5 km/h. Radial lift geometry provides strong breakout force and reliable load handling, while high tipping loads increase job-site stability.

Key details

• Engine model: Kubota D1305-E4B
• Engine gross power: 24.8 hp (18.5 kW)
• Engine net power: 24 hp (18 kW)
• Transmission: Hydrostatic
• Maximum travel speed: 7.5 km/h
• Lift geometry: Radial lift
• Tipping load: 1285 kg (narrow tracks) / 1428 kg (wide tracks)

Applications
Designed for loading, lifting and digging tasks in confined or uneven environments such as construction sites, landscaping, agriculture and municipal works where compact tracked traction and precise control are required.

Technical characteristics

• Rated operating capacity (R.O.C.): 500 kg
• Engine power (gross): 24.8 hp / 18.5 kW
• Engine power (net): 24 hp / 18 kW
• Engine: Kubota D1305-E4B
• Transmission type: Hydrostatic
• Maximum travel speed: 7.5 km/h
• Lift geometry: Radial lift
• Tipping load (narrow tracks): 1285 kg
• Tipping load (wide tracks): 1428 kg
