Stainless steel sliding system Junior

aluminumglass doorfolding

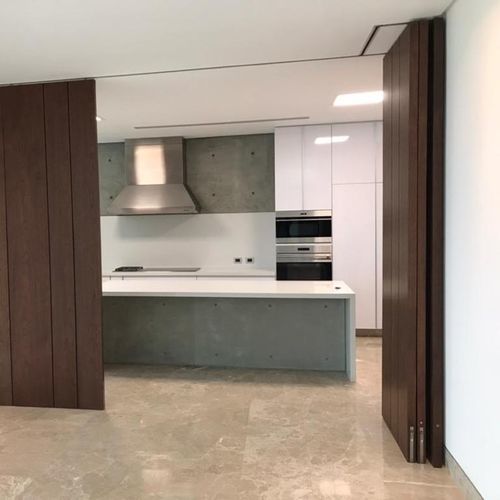

The independent wings system slides inside a top mounted track. The wings are then stacked away in specially designed parking bays, which are parallel or perpendicular to the sliding track. The system allows an unlimited number of wings and the possibility of segmented installation with very low curve radii. Junior • Maximum size of each individual wing 1000 x 3000 mm • Upper track size 56×60 mm • Max wing weight 85 kg • Glass thickness 8-10-12- 12,76 mm Junior 700 • Maximum size of each individual wing 1000 x 3000 mm • Upper track size 56×60 mm • Max wing weight 100 kg • Glass thickness 8-10-12 mm Junior 750 • Maximum size of each individual wing 1300 x 3500 mm • Upper track size 70×78 mm • Max wing weight 150 kg • Max. Glass thickness 19 mm Junior 800 • Maximum size of each individual wing 1500 x 4000 mm • Upper track size 90×100 mm • Max wing weight 180 kg • Glass thickness 8-10-12 mm
