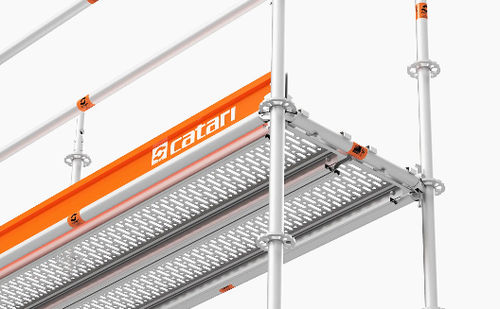

Aluminum scaffolding US® U-TYPE

high

Catari US® is a multidirectional scaffold based on the ring-lock design. Its versatility and load-bearing capacity makes it suitable even for the most complex and demanding scaffold constructions, such as heavy duty industrial and civil engineering applications. Ledgers, bridging ledgers, lattice beams and console brackets are also available in the U-type version, compatible with the steel decks of Catari FA-48® Standards From 0,5m up to 3m Ledgers From 0,42m up to 3,07m Decks Steel decks and aluminium access decks UNDERSTANDING THE ROSETTE Welded to the standards every 50 cm, rosettes contain shaped openings to fix up to eight other components through wedge-clamped heads. These heads exist at the extremity of the system’s components and fit exactly round, assuring solid joints with high load-bearing capacity. ASSEMBLY WORKFLOW To extend the scaffold to the required length and width, add to the existing bay as many base jacks as needed. For additional levels, stack new standards on the spigots of the existing ones. Ledgers, decks and toe boards are then used to create a safe working area. FURTHER EXPLORING To explore multiple other configurations in size and shape, main components have several dimensions and varying purposes. In turn, combining accessories will always work to achieve an optimized scaffolding design, taking full advantage of the versatility of the system. Ledgers, bridging ledgers, lattice beams and console brackets are also available in the U-type version, compatible with the steel decks of Catari FA-48®
