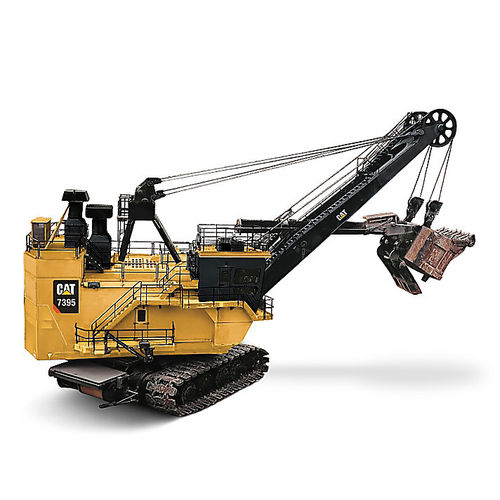

Crawler excavator 7395

cablefor constructionelectric

DIPPER PAYLOAD 64 t DIPPER CAPACITY 20.6-55.8 m3 (27-73 yd3) WORKING WEIGHT - WITH DIPPER AND STANDARD LINKS 1202927 kg 7395 Electric Rope Shovel DIMENSIONS Dipper Payload - 64 t Dipper Capacity - 20.6-55.8 m3 (27-73 yd3) Note - Dependent on application and material density. WEIGHTS Working Weight - With Dipper and Standard Links - 1202927 kg Ballast - Furnished By Customer - 260362 kg Note (1) - These weights will vary slightly depending upon dipper and optional equipment selection. Note (2) - All specifications are based on a 24 m3 (32 yd3) dipper and standard 213.4 cm (84 in) treads. MAIN STRUCTURES Ground Bearing Pressure - 274.3 cm (108 in) Treads - 296 kPa Planetary Propel - Dual-motor independent drive. Crawler Dimensions - Overall Width 213.4 cm (84 in) Treads, Standard - 10 m Ground Bearing Pressure - Total Effective Bearing Area (2) - 41 m² Ground Bearing Pressure - Ground bearing pressure is dependent upon many factors. Ground Bearing Pressure - Total Effective Bearing Area (1) - 32 m² Upper Works Overall Width - Including Standard Walkways - 13.5 m Crawler Dimensions - Overall Width 274.3 cm (108 in) Treads - 10.6 m
