ENGINE MODEL
Cat® C27
FLYWHEEL POWER
447 kW
OPERATING WEIGHT
70171 kg

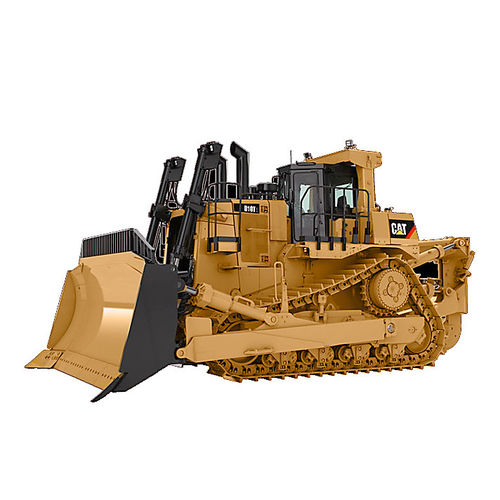

Over the years, the D10 dozer has proven itself to be a highly productive and versatile machine. It is flexible enough to be used on heavy construction sites and robust enough to be used on mine sites. Continuing the D10T's legacy, Cat customers can count on the D10T2's superior performance, long life, ease of operation and world-class service from the global Cat dealer network to be the backbone of their operation.
THE PERFECT MIX
OF MUSCLE,
COMFORT AND VERSATILITY
HELPING YOU GET
MORE DONE…
FOR LESS
HIGH TORQUE RISE OF
21%
FOR POWERING THROUGH THE TOUGHEST MATERIAL
MAINFRAME STRENGTH
Helping you get more done with maximum availability, the D10T2's durable design makes repair and maintenance easy. Customers can rebuild these tractors several times using the same frame with only minor repairs.
The D10T2 mainframes are built to absorb high impact shock loads and twisting forces encountered during severe dozing and ripping applications.
The main case, equalizer bar saddle, and front cross member are heavy duty steel castings incorporated into highly loaded areas of the mainframe to improve stress distribution for improved durability.
Top and bottom rails are made from continuous rolled sections, providing superior mainframe durability.
The main case elevates the final drives well above the ground level work area to protect them from impact loads, abrasion and contaminants.
The pivot shaft and pinned equalizer bar maintain track roller frame alignment and allow the roller frame to oscillate for smoother ride.
