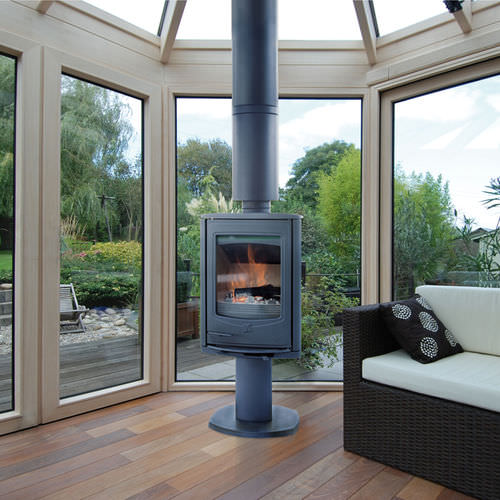

Metal smoke flue EFFICIENCE

complete system

20mm insulated triple wall system chimney for wood burning stoves The Efficience chimney system is a concentric insulated chimney with mineral wool insulation allowing the connection of combustion air and the smoke exhaust. This system has been designed to operate safely with the latest generation of high efficiency wood burning stoves and is suitable for use in all types of air tight housing, new build or renovation projects. This chimney system works in negative pressure and optimises the appliance’s efficiency and can be used on top or rear connection appliances. It is available in 5 diameters (Ø100, Ø130, Ø150, Ø180 & Ø200). > Optimise the performance of the appliance. > Avoid down-draught issues. > Pre-fabricated chimney stack available. > Available in any RAL colours. > Table of recommended Efficience connections by stove make and model(PDF) > Max. Temperature limitation: 450°C > CE marking: 0071-CPR-24988 > Designation: T450 N1 D V2 L50040 G50 - Inner wall thickness: 0.4mm > Insulation: 20mm high density mineral wool insulation. >Air gap: 30mm
