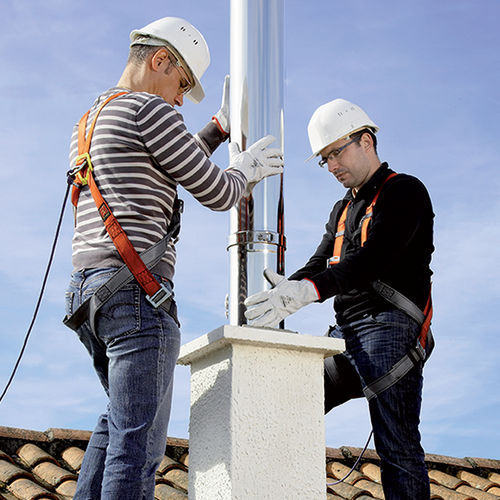

Metal smoke flue SINGLE WALL

complete system

SINGLE WALL is a fully seam welded 316L stainless steel single wall pipe. It can be used as a liner to an existing brick stack and / or a connecting flue pipe for solid fuel appliances and as a chimney system for gas & oil appliances. It is available in 6 diameters (Ø100, Ø130, Ø150, Ø180, Ø200 & Ø250). > The Poujoulat cone to cone patented joint provides a 50 mm depth engagement, giving excellent joint stability and performance. > Every component is supplied with a Locking band and a safetey ring to guarantee security. > Quick and easy to install with no mess. > Wide range of accessories i.e. Terminals, Register Plate, Adjustable Elbows, brackets & supports > Max. Temperature limitation: 450°C > CE marking: 0071-CPR-0014 > Designation: > Ø100 to Ø150: T450 N1 W V2 L50040 G - thickness: 0.4mm > Ø180 to Ø250: T450 N1 W V2 L50060 G - thickness: 0.6mm > The RC EM Adaptor provides a perfect connection between the single wall chimney and the Enamel Premium & Startinox connecting flue pipe. > The extended 175 mm long spigot on the RC EM Adaptor when used with the Poujoulat register plate provides up to 100 mm pipe adjustment making the installation of the stove easier.
