Concentric flue system for pellet stoves

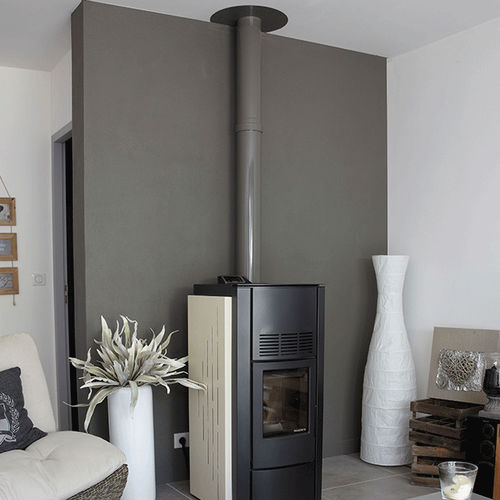

The PGI Pellet system is a stainless steel concentric flue suitable for pellet stoves.
This new generation of chimney optimising the appliance efficiency and can be used both in new build and renovation installations where energy saving and thermal improvement are the aim.
It is available in 2 diameters (Ø100/150 & Ø130/200).
> The stove efficiency can be improved by 10 to 15% reducing the amount of fuel consumed.
> Adaptor solution to suit most of appliances outlets
> High quality product
> Quick and easy to install
> Easily meets regulation requirements
> Wide range of accessories i.e. Terminals, adjustable lengths, elbows, tees, brackets & supports.
> Max. Temperature limitation: 450°C
> CE marking: 0071-CPR-23485
> Designation: T450 N1 W V2 L50040 G100* - Inner wall thickness: 0.4mm.
> Dynamic application: If combustion air is supplied via the system then it is a dynamic application requiring just 50mm clearance to combustible materials.
> Static application: If the air is supplied by an independent source then, the air gap is static in which case 100 mm clearance to combustible materials is required.
>Most pellet stoves are compatible with our PGI chimney system. They benefit by having the necessary combustion air supply pre-heated by the chimney on route to the stove air intake. As a result, there is an improvement in the combustion process providing 10 to 15 % annual fuel saving (400 kg of pellet).
> The lengths with air intake come in 2 options 90° and 135° to suit location of the air supply on the stove.
