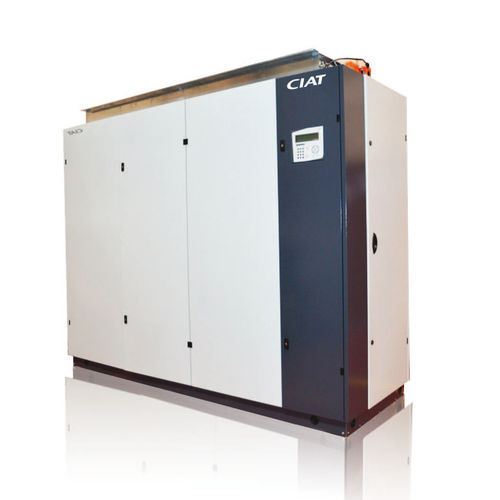

Floor air conditioning unit MAGISTER CW / DXA

floor air conditioning unit
floor air conditioning unit
floor air conditioning unit
Add to favorites
Compare this product


commercial, industrial
Other characteristics
outdoor, free cooling, water-cooled
Cooling power

Min.: 10 kW

Max.: 116 kW


Range : 5 chilled water (CW) models and 4 direct expansion (DXA) models UNDER: Return from above and supply into the raised floor. OVER: Return from front and supply from above. CW:Vertical chilled-water air handling unit. DXA:Vertical self-contained unit with air condensation unit ( R410A fluid). Operating range : Cooling capacity: 10 to 116 Kw Air flow rates: 3,000 to 27,500 m³/h Use : Vertical self-contained air conditioner specially designed for spaces with high heat loads or sensitive rooms (data centres, computer rooms, switch rooms, etc.). Magister boasts a sleek design that blends seamlessly with any space. Its built-in technologies - self-regulating control that adjusts to room loads and electronically commutated motor - keep its energy consumption down. The fan* also has a modBus card which allows faults and settings such as the actual power input, current, rotation speed, etc. to be transmitted. *CW only Description : Packaged unit Double-skin panels with M0/A1 insulation, galvanised base and aluminium frame G4 or F7 filter filter Cooling provided by a chilled-water coil fitted with two-way or three-way valve Plug fan coupled with an EC moter with ModBus card integrated ( CW only) Heating provided by hot-water coil or electric heater Steam humidifier Complete electrical cabinet, CIAT µAIR CONNECT 2 control A wide range of options Free cooling module (option) takes in fresh air from outside Outdoor unit (DXA model): CONDENCIAT CD air condensation unit Power supply: Three-phase 400V / 50 Hz + T. SCROLL heat compressor HP safety pressure switch2-speed IP54 motor Coil protection grille
