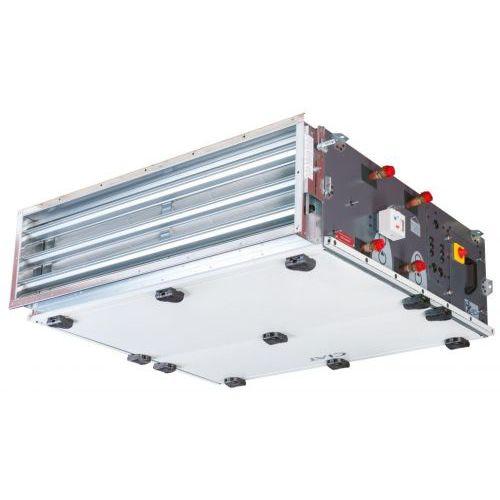

Commercial air handling unit
industrialindoorcompact

commercial air handling unit
commercial air handling unit
commercial air handling unit
commercial air handling unit
commercial air handling unit
commercial air handling unit
Add to favorites
Compare this product


Characteristics

Market
commercial, industrial
Specifications
indoor, compact

Description

Multi-bloc air handling units 1 / 2 Range : The range is composed of 3 sizes (thickness: 400 mm). Available pressure from 100 to 1000 Pa with high performance and minimum sound level The widths of the 3 sizes of Air Compact 25, 40, 60 are 750 mm, 1310 mm and 1880 mm. Optimised performance thanks to the control system Operating range : Air flow rate : up to 6 000 m3/h Use : This air handling unit is particularly well suited to the air conditioning of separate zones. It features high static pressure and requires low ceiling heights. The range features a wide array of housings and accessories. Available in horizontal or vertical configurations for indoor installation. Description : All usual functions, such as damper, opacimetric filter, water or electric heating, chilled-water or direct-expansion cooling, ventilation, mixing, distribution plenum, quiet operation, recovery units Installation: ceiling or floor (horizontal units) or wall-mounted (vertical units), Removable hinged doors, Wide selection of additional equipment. > advantages Complete range with many easy-to install options (thickness: 400 mm) Low sound level, Double-skin casing insulated with 25 mm thick mineral wool insulation, External sides made of galvanised steel with RAL 7024 and RAL 7035 finish, Components easily accessible via a hinged door with quarter-turn latch, Adapts easily to duct network conditions using plug fan and frequency inverter or EC motor Pressure tappings on filtration section, Easy to maintain, Optional control equipment for "plug & play"
