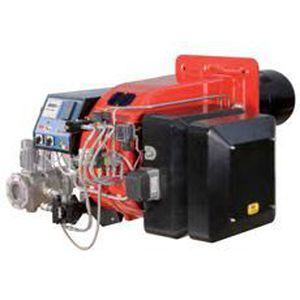

Multi-fuel gas burner HR91A

fuel oil

The NOVANTA series, available in both progressive and modulating operations, represents the culmination of our experience in the field of medium-large capacity burners (up to 4.100 kW). Like all the other dual fuels models, this series perfectly combines the mechanical devices and systems typical of gas burners with the ones of light oil burners. In this manner this series can burn the two flues separately. This is possible because these burners are equipped with an independent electric motor for the activation of the oil pump. As a consequence during gas firing, the oil pump motor does not operate and remains off. These burners are equipped with a high performance combustion head, designed to achieve a high irradiating flame when they run on natural gas. Instead, when they run on light oil, they are equipped with a by-pass nozzle which, using a pressure regulator, can reach a modulating ratio of 1:3. The control panel is printed with a mimic diagram fitted with neon lamps to indicate the different stages of burners operation and any abnormalities. Therefore, the burners are provided with an UV photocell to control the flame during the operation.
