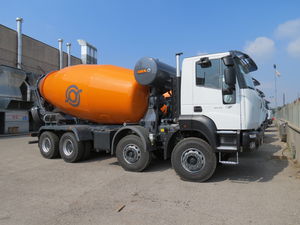

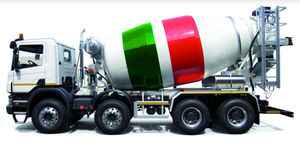

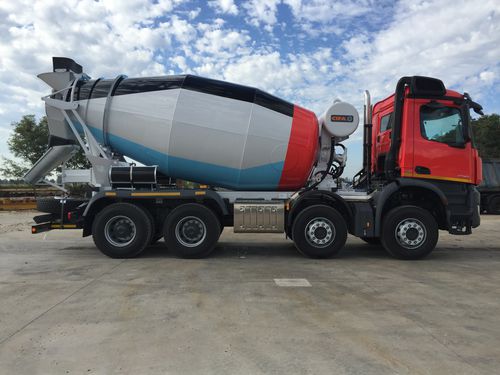

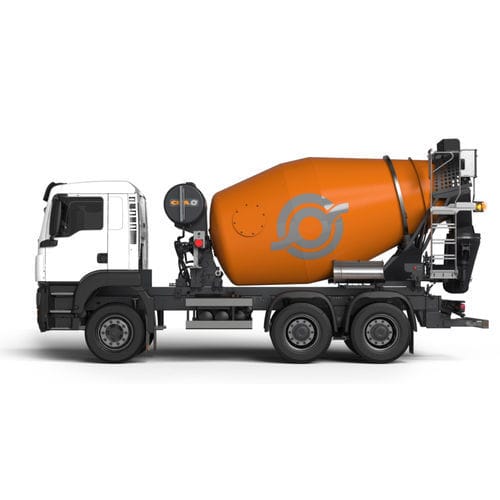

Diesel mixer truck SL SERIES

for concrete

The “SL/SLA” Series has been conceived with a modern and compact design which goes towards increasing better performances, such as a higher geometrical volume of the drum combined with a very limited total weight, simpler maintenance with greater safety. Basic frame, straight or shaped, made profile according to truck’s manufacturer specifications Drum design according to DIN459 norm with large loading volumewith high water line Drum and blades made by special wear-resistant steel 30MnB5, having high mechanical characteristics and high content of chrome and manganese Wear protected blades Two rollers diam. 250 mm with special off road support, completely bolted for an easy maintenance and adjusting Water tank capacity 400 I (SL/SLA 7-8-9), 800 l (SL/SLA 10-15) Two washing nozzles (one at ground level by quick joint and one on ladder platform) Manometer for the concrete consistency Two light additional chutes in iron-plastic material, with supports for their fixing on counterframe Special design charging hopper and discharging hopper and chutefor a fast and smooth charging and discharging completely boltedfor a better and simple maintenance Wear plates on charging hopper and discharging chute Discharging chute hydraulically driven by manual pump Adjustable support for hydraulic pump Water pump driven by reducer No. 2 quick joint water fillers on front sides of supporting frame Oil cooler with integrated oil tank Plastic back protection on rear support easy to clean Two strong armed swivel chute system
