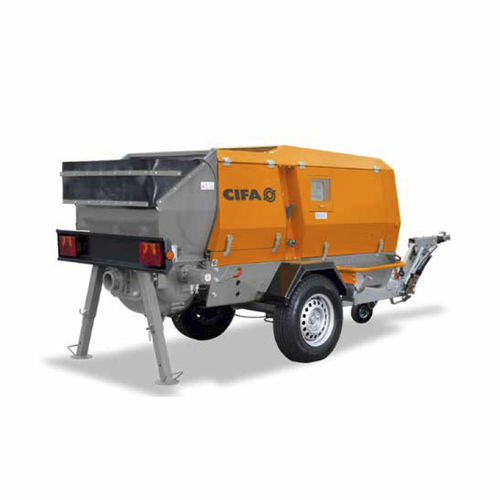

Trailer-mounted concrete pump PC_158

PC 158 is a 2-cylinder hydraulic piston pump with S-valve and variable output for pumping concrete, micro-concrete, special concrete and for shotcrete. PC 158 is a reliable choice, especially in difficult working conditions. PC 158 is a 2-cylinder hydraulic piston pump with S-valve and variable output for pumping concrete, micro-concrete, special concrete and for shotcrete. PC 158 is a reliable choice, especially in difficult working conditions. Concrete, grouts, structural mortars, refractory mortars Self-levelling floor screeds Land reinforcement Micro-piles, pressurized injection of mortars and cementitious slurries Compaction grouting Liquid cooled diesel engine 4-cylinder - Perkins - 404D22 -36,3 kW - 50 HP (Stage III A) Electric motor (upon request) 22 kW - 400 V 50 Hz Infinitely adjustable output* m³/h from 2 to 15 Max. aggregate size mm 25 Max. working pressure bar 80 Pumping cylinders mm Ø 120 x 700 mm
