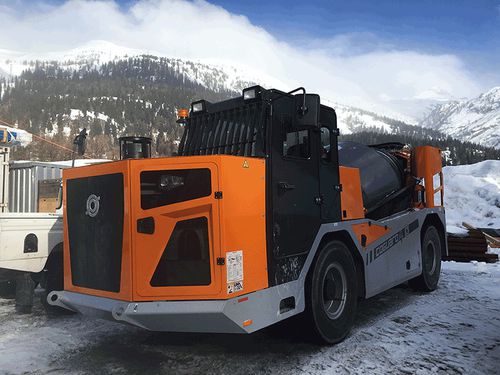

Diesel mixer truck COGUARO

for concrete

Cougar 4 is the first mixer designed to work in a mine. A new product, with an unmistakeable style. The prototype, developed also considering Italian-made style and design with a careful eye on ergonomics, will be used for special transport of concrete in the tunnels and mines. Small spaces and challenging working conditions; this is the ideal field for the new mixer to show off all its talents. 2 and a half metres tall, with 4 driving and steering wheels, it is fitted with a FOPS/ROPS anti-rollover cab and a drum with a maximum nominal capacity of 4 cubic metres. Equipped with electronic and video sensors to detect the position of any obstacles, the machine is efficient, reliable and offers lower fuel consumption. Main Features Diesel engine STAGE III-A • Diesel engine STAGE IV- Final • Driving cab ROPS-FOPS certification closed type rear view camera • Service brakes multi-disc type, in oil bath on both axles hydraulic, with independent circuits internal SAHR discs • Parking brake negative hydraulic operation on both axles • Electrical system 24 V battery 2 x 120 Ah alternator 80 A front lights 2 x 55 W rear lights 2 LED • Washing system high pressure water pump, 50 l/min – 50 bars hydraulic drive nozzle and 10 m of pipe water tank , 220 l • Drum anti-spillage rear hatch two man holes water meter antirebound device locking system two rollers diam. 250 mm CSD (Constant Speed Drive) drum functionality during the road transfer and operations
