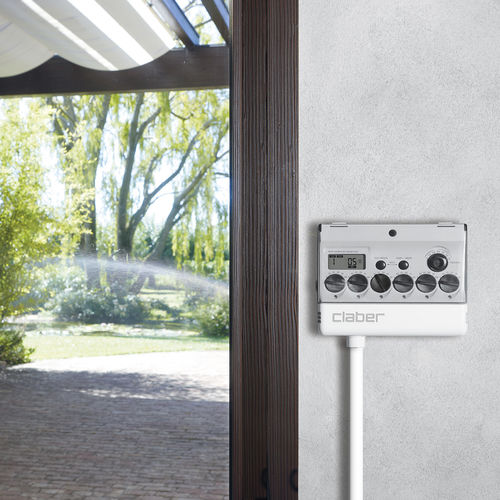

Irrigation programmer MULTIPLA® series
wall-mountedcentral controls

irrigation programmer
irrigation programmer
irrigation programmer
irrigation programmer
irrigation programmer
irrigation programmer
irrigation programmer
Add to favorites
Compare this product


Characteristics

Function
irrigation
Installation
wall-mounted
Other characteristics
central controls

Description

It allows you to choose from different irrigation timessimply by turning the dial: it doesn’t get any easier than that when it comes to underground irrigation! MANAGES UP TO 6 INDEPENDENT LINES DELAYED START BUFFER BATTERY FOR MAXIMUM RELIABILITY CAN BE CONNECTED TO RAIN SENSOR Easy-to-program 6-line electronic timer: just turn the 6 dials to set the required irrigation schedule: 5 - 10 - 15 - 20 - 30 - 60 minutes. There is a frequency control for selecting the repetition of the watering programme at predefined intervals: 8h - 12h - 24h - 2 days - 3 days - 4 days - 7 days. There is a start button for immediate activation of the programme or the manual function for the system test phase - “start + ... hours” button for a 23-hour delay in activation of the programme. An intermittent LED system indicates valve opening. A safety timer delays valve opening by 5 seconds. Pump control. 9 V buffer battery. External 220 - 24 V transformer included. Compliant with CE standards. Designed for direct connection to the Rain Sensor. Width: 215 mm Height: 188 mm Depth: 60 mm Weight: 1063 g body: ABS wall bracket: ABS cover lid: PC Fixing: can be wall-mounted Voltage: 24V AC Outlets: 6 Programmes: 1 Type of programmes: preset Max. frequency of watering cycles: 3 per day Min. watering duration: 00:05′ Max. watering duration: 01:00′ Valves voltage: 24V AC Rain sensor: wired Powered by: 1x9V Warranty (years): 3
