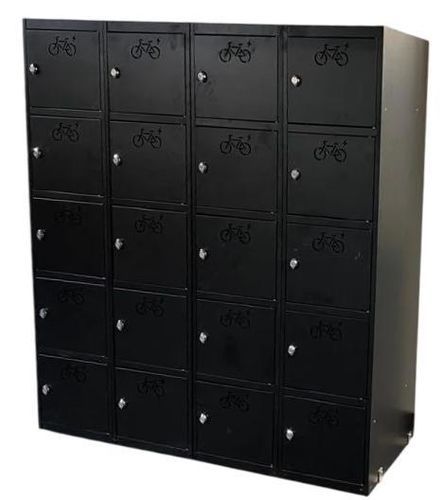

Powder-coated steel storage locker E-BIKEBOX

metalsteelpolycarbonate

Overview
Simplify the storage and charging of equipment: e-bike batteries, electric scooters and small devices using modular, secure lockers.

Main features

• Modular lockers: configurations in columns of 4 or 5 compartments.
• Doors: available in steel or plexiglass depending on requirements.
• Security options: key, badge, electronic code, hasp/padlock, coin acceptor or Bluetooth/electronic-code locking.
• Integrated charging: optional charging for e-bikes and other devices via an IP54 outlet in each compartment.
• Daily use: each compartment includes an IP54 outlet and a helmet hook.
• Customizable: compartment numbering, color selection and logo integration.
• Easy installation: floor-mounted columns that plug into a standard electrical outlet.

Description

• Locker bank composed of 4 or 5 compartments per column with a socket enabling recharging of e-bike batteries.
• Can be installed indoors or outdoors (optional Dibond cladding for outdoor use).
• Material: metal locker with hinged door.
• Wall protection supplied: flexible PVC plate to protect the wall from tool impacts.

Technical characteristics (summary on the page)
Powder-coated finish, multiple colors available: white, ivory, matt black, grey, anthracite, blue, red, yellow, green.
Adhesive signage for logo integration.

Dimensions and clearance
Column: Height 1800 x Width 400 x Depth 500 mm
Interior of one compartment: Height 360 x Width 400 x Depth 500 mm

Equipment per compartment

• 1 IP54 outlet in each compartment for charging.
• 1 helmet hook in each compartment.
• Possibility to number compartments and/or insert company logo.
• Different locking types: coin acceptor, hasp/padlock, key, electronic code lock with badge.

Installation
The column is placed directly on a flat floor (option to fix). The column plugs into a standard power outlet for quick commissioning.

After-sales service and warranty (extract)
Repairs are carried out either by the facility operator with shipment of spare parts, or by on-site intervention at the operator. The structure is guaranteed 5 years against defects (excluding wilful damage, improper installation or paint impact).

Characteristics / technical specifications

• Modularity: columns configurable in 4 or 5 compartments.
• Material: metal structure, hinged door.
• Wall protection: flexible PVC plate supplied.
• Outlets: 1 IP54 outlet per compartment for charging e-bike batteries and compatible small devices.
• Accessories: helmet hook in each compartment.
• Security: locking options (key, badge, electronic code, hasp/padlock, coin acceptor, Bluetooth/electronic code).
• Finish: powder-coated paint, wide choice of RAL colors.
• Column dimensions: H 1800 x W 400 x D 500 mm.
• Interior compartment dimensions: H 360 x W 400 x D 500 mm.
• Installation: floor-mounted, plug into standard electrical outlet.
