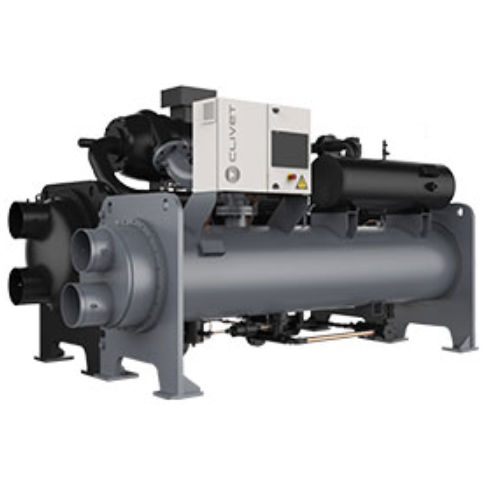

Water-cooled chiller WCH-IZ

for indoor use

Water chiller Water cooled Indoor installation Capacity from 808 to 1599 kW Functions And Features: Centrifugal units WCH-iZ are high-efficiency chillers with HFO R-1234ze refrigerant ideal for high powered commercial and industrial buildings. Designed for indoor installation, they guarantee maximum energy efficiency throughout the entire operating cycle. REFRIGERANT HFO WITH REDUCED ENVIRONMENTAL IMPACT: Clivet’s constant search for solutions for sustainable comfort and environmental well-being has led to the development of the WDAT-iZ range of chillers with the R-1234ze refrigerant, which stands out for its nearly zero environmental impact (GWP < 1). ADVANCED TECHNOLOGY: the centrifugal WCH-iZ is based on a combination of technologies, designed to reduce energy consumption, limit the refrigerant charge, ensure reliable and silent operation. Direct drive compressor with opposed impellers, falling film evaporator, economizer, recovery oil circuit. EXTREMELY HIGH ENERGY EFFICIENCY: the use of the inverter technology allows to adapt the rotation speed of the compressor to the real request of the system. The minimum reacheable modulation is equal to 15% of the total capacity, that means a very high seasonal efficiency, SEER up to 9.64.
