Collector sweeper bucket CBS SERIES

for backhoe loadersfor skid steer loadersfor telehandlers

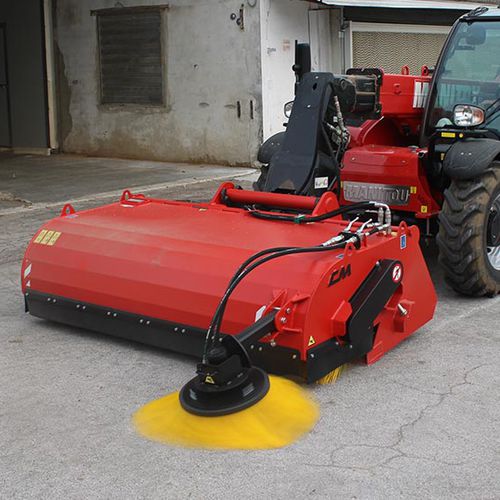

The sweeper bucket CBS series is equipped with a collecting bucket positioned behind the operating machine with the polypropylene brushes roller increased on the front and is mainly indicated for road cleaning work, sidewalks or generally for heavy work. Applicable to all operating machines but especially ideal for mini skid steer loaders, telehandlers, wheel loaders and backhoe loaders. It is built in 9 models with working widths from 1 to 3 m. The structure is designed with high strength material, is equipped with side and front protections in sturdy rubber and is supplied with pressure-flow limiting valve, hydraulic motor and chain transmission. Thanks to the chain transmission system, the motor, positioned high, is protected both from dust and dirt, and from possible impacts while using the sweeper. Side brush cleaning ø 600 mm. with indipendent hydraulic motor Mixed steel side brush cleaning ø 600 Steel side brush cleaning ø 600 Watering kit by falling with 100 lt. tank Watering kit by pressure with 12 V pump and sprayers, 100 lt. tank Watering kit by pressure for operating machines with own tank Hydraulic opening Hydraulic quick coupling kit Connector 8-14 Poles 12 V Steel mixture brush
