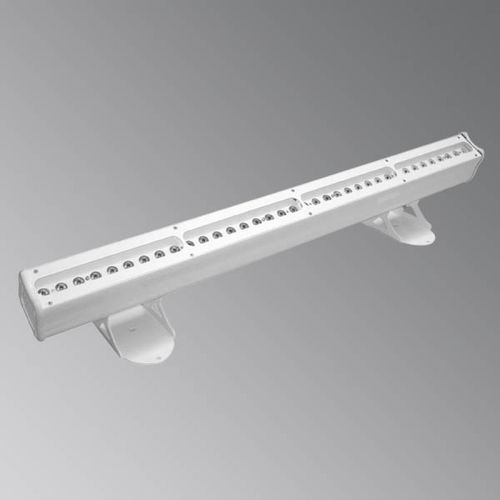

A LED bar with a RGBW color mixing, 40 Cree LEDs, 10 Red, 10 Green, 10 Blue and 10 White.
Featuring a standard lens of 13° x 40° degrees, DMX512A in and thru 5-pin XLR connectors, electronic dimmer, electronic strobe, flicker-free.
Orientable standing feet or quick camlok clamps on a modular guide with adjustable position.
Weatherproof rating IP20 or IP65.
SPECIFICATIONS
RGB+W color mixing
Standard lens 13° x 40°
Electronic dimmer
Synchronized, random or pulse electronic strobe
Flicker-free operation
2 ground-standing feet
IP rating: 20 or 65 (weatherproof)
CE approved
LIGHT SOURCE
40 Cree LEDs (10 Red, 10 Green, 10 Blue, 10 White). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
Length: 1.009 mm (39.7 in)
Width: 95 mm (3.7 in) - with ground-standing feet: 220 mm (8.7 in)
Height: 117 mm (4.6 in) - with ground-standing feet: 207 mm (8.1 in)
Weight: 6.3 Kg (13.9 lbs) - with ground-standing feet: 7.3 Kg (16.1 lbs)
CONTROL PROTOCOL AND PROGRAMMING
USITT DMX512A
DMX channels: 12 / 8 / 4 / 1
Setting, addressing, testing and measurements via LEDs display
RDM (Remote Device Management)
ELECTRICAL SPECIFICATIONS CONNECTIONS
AC power: 90-264 V, auto-sensing, 50/60 Hz, 2 m (6.6 ft) integral cable without power plug
In and Out PowerCon connectors
Max power consumption: 85 W
Power consumption: 0.4 A at 230 V, 0.82 A at 115 V – cosφ 0,9
DMX data in/out: 5 pin locking XLR
ACCESSORIES
12° lens kit
30° lens kit
50° lens kit
Quick cam-lock clamps, on a modular guide with adjustable position
