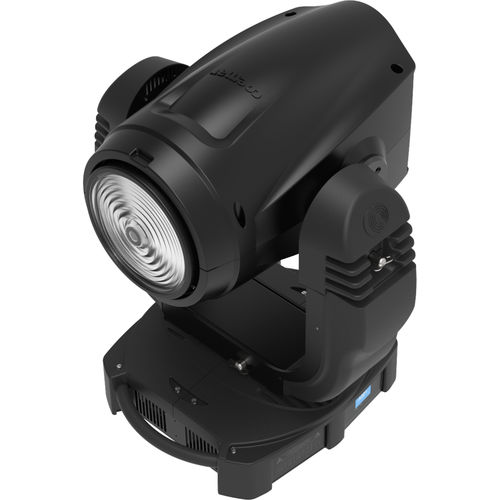

The motorized version of the current Phantom Led Fresnel.
This fixture has been developed after our customers’ recurrent requests, who were looking for a more versatile solution in order to reduce the burden of manually adjusting the setting of the fixtures once mounted on the rigging infrastructure.
Available in two different versions: tunable Daylight and tunable Tungsten.
SPECIFICATIONS
RGBW color mixing
CCT: all whites from 2.700 to 4.100 K
Green-Magenta adjustment
Motorized zoom from 13° to 65°
Barndoor framing system (Patented): framing system offering four independently variable axial blades with proportional rotation of the assembly through 90°
Electronic 16 bit dimming with 2 selectable curves, simulating halogen or discharge lamp based fixtures
Flicker-free operation with LEDs frequency controlled via DMX from 600 to 19.000 Hz
Fan setting with 3 different options (low noise, auto silent, DMX)
IP rating: 20
CE approved
LIGHT SOURCE
RGBW LEDs module (CRI avg. 96 at 3.200 K, TLCI avg. > 94). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
Length: 376.5 mm (14.8 in)
Width: 551.3 mm (21.7 in)
Height: 730.1 mm (28.7 in)
Weight: 30 Kg (66.1 lbs)
