The quickest and most cost-effective way to switch your studio or theatre from halogen to LED.

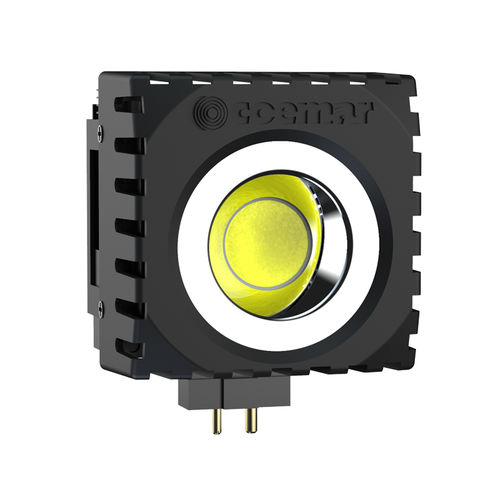

The Mini ReLite is a LED based lamp designed to retrofit 300 / 500 / 650 W traditional incandescent fixtures.
Tungsten and Daylight versions available (CRI 90 or CRI avg. 97 – high CRI version for Studio applications).
Full-range dimming on your existing AC dimmers
Linear dimming from 1% to 100%: the stability of the fixture is guaranteed starting from 30/35 % of the dimmer channel (depending on the installation conditions)
Flicker-free operation ideal for TV/Broadcast installations
Huge power savings (reduce your power consumption by over 90%) with almost no heat generated
Long life LED lamp (no relamping issues and no maintenance costs)
Thermal protection
SPECIFICATIONS
Fixed white CCT: 3.200 K
Linear dimming from 1% to 100%: the stability of the fixture is guaranteed starting from 30/35 % of the dimmer channel (depending on the installation conditions)
Full-range dimming on your existing AC dimmers
Flicker-free operation (dimming with constant current)
Thermal protection
IP rating: 20
CE approved
Instantly upgrade an existing Arri, ADB or De Sisti (and more)
LIGHT SOURCE
Tungsten COB LED (CRI 90 or CRI avg. 97). Average LED lifetime: a minimum of 80% of the initial luminous flux will be maintained after approx. 50.000 hours of usage (50.000 LM80).
PHYSICAL SIZE
Length: 73.7 mm (2.90 in)
Width: 76.5 mm (3.01 in)
Height: 77 mm (3.03 in) - with connectors: 96 mm (3.78 in)
Weight: 0.3 Kg (0.66 lbs)
ELECTRICAL SPECIFICATIONS CONNECTIONS
Power supply: 90-240 V, auto-sensing, 50/60 Hz
Max power consumption: 70 W
