Smoke curtain SMOKEMASTER SM-ST

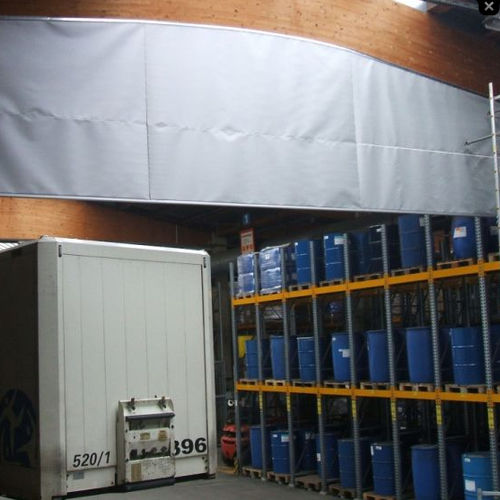

Colt’s Smokemaster SM-ST fixed smoke curtain prevents the movement of smoke and heat from one area to another in a fire by channelling or containing the smoke and heat. It conforms to EN 12101-1 and has a D120 rating. The Smokemaster SM-ST fixed smoke curtain consists of a fabric material which is held within a series of angle pieces and thereby clamped. At the bottom of the cloth there is a weight, ensuring that the curtain remains taut and reduces the amount of deflection through air currents. High performance - Designed to withstand hot air and smoke at temperatures up to 600ºC for up to 120 minutes once only. Certified performance - The complete product has been successfully tested and certified to EN 12101-1 in accredited third party test laboratories and is CE marked. It achieves a rating of D120. The fabric has been tested to EN 13501-1. Configurations and sizes - Overall smoke curtain lengths for single units are available from 1500 to an infinite dimension, and drops are available from 500mm to 8000mm. Design service - Colt provides a pre-order design service. Description Fixed smoke curtain, to prevent the movement of smoke and heat from one area to another in a fire. Dimensions/ size range Overall curtain lengths from 1500mm to an unlimited length, and drops are available from 500mm to 8000 mm. Performance Complete product tested to EN 12101-1, and achieves a rating of D120 (600 °C, 120 minutes). Designed to withstand hot air and smoke at temperatures up to 600ºC for 60 minutes once only. The fabric has a resistance to fire of class A2-s1,d0 when tested in accordance with EN 13501-1.
