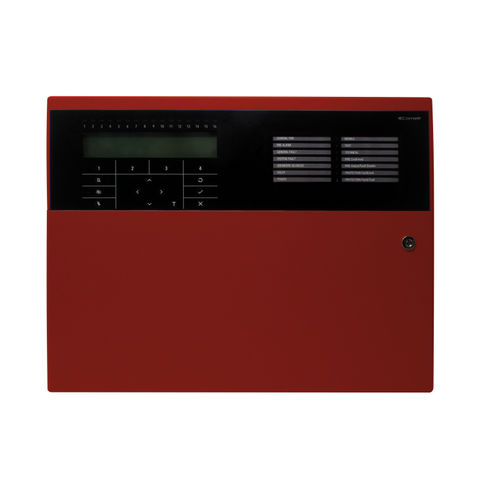

Fire alarm 41CPE112R

The 41CPE112 LOGIFIRE series addressable fire panel is supplied as standard with 1 Loop, which can be expanded to 2 using board 41ECL022. Up to 250 addressed devices (detectors, buttons, I/O modules, sirens etc.), divided into a maximum of 48 zones in total, can be connected to each loop. The control panel has a 5A power supply unit with 12 V output for battery. It has a strong red container (430x330x150 mm) with the same dimensions as all the new Comelit LOGIFIRE series control panels, so as to guarantee optimum modularity and side-by-side pairing of the boxes during installation. All indications and commands are displayed on the front in compliance with the requirements set out by standard EN54-2, by means of LED indications and the alphanumeric LCD display with 4 rows of 40 characters. Fire alarm, Fault, CPU Fault, Delayed Alarm, Exclusions, Test, Faulty/Excluded Siren, Confirm Fire Alarm, Faulty/Excluded Alarm Output, Extinguishing Started, Extinction Fault, Network Present, Alarm Silenced general indications. Direct commands for Silence buzzer, Silence siren, Reset, Evacuation, Signalling test. 4 menu navigation keys. Approved to EN 54-2 and EN 54-4, conforms to EN54-13.
