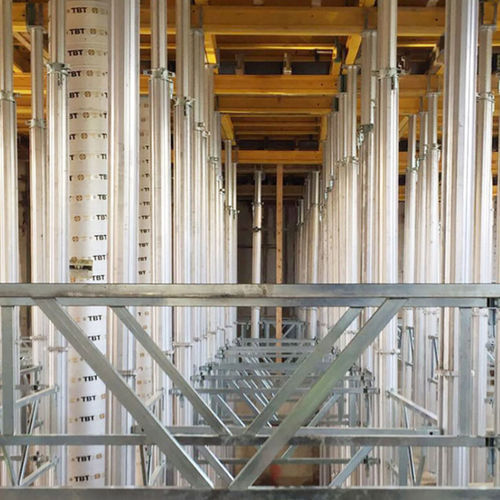

Aluminum prop ALUPROPmodular
Add to favorites
Compare this product
Characteristics
- Material
- aluminum
- Options
- modular
- Load capacity
Min.: 7 kN
Max.: 31 kN
- Height
Min.: 2 m
(6'06" )Max.: 6 m
(19'08" )
Description
Our class B props with covered thread are certified according to the norm UNI EN 1065
For the production we use raw materials produced according to the Norm UNI EN 10219, combined with innovative machines that guarantee a high quality and safety of the products.
The UNI EN 1065 props are used for shoring and renovation, also thanks to our flexibility we can create customized props for dealers and rental companies.
Inner tube Ø48,3 [mm] made in steel S235JRH according to the norm UNI EN 10219-1/2
Outer tube Ø60,3 [mm] made in steel S235JRH according to the norm UNI EN 10219-1/2
Hook Ø 14 [mm] made in steel S235JRH
Hand safety system
Inner tube anti-extraction system
Adjustable steel sleeve
Inner tube drilled every 100 mm to adjust the prop extension
Available in wide range of dimensions from 1,80 to 5,50 m
A wide range of accessories available
Uncovered thread
Owner’s Manual
Available immersion painted with red clolor (Ral 3009)
Available hot-dip galvanization or electrolytic galvanization
Catalogs
CatalogoItaIng_22-0206-1
104 Pages
