Beige radiator cover SOFI® X

white

Overview

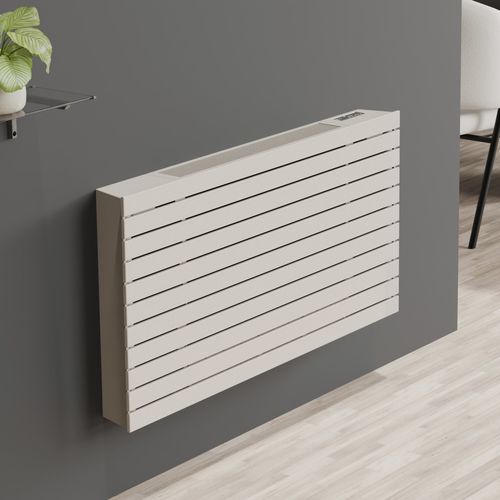

SOFI X is a combined unit integrating a radiator and a fan coil. The solution operates with patented software and mechanics to provide high thermal output and efficient operation, combining the appearance of a traditional radiator with the functionality of a fan coil. It is suited to low-temperature systems and extremely compact installation spaces.

Main features

• Heating and cooling capabilities (radiator + fan coil)
• Designed for low-temperature operation
• High output and high efficiency
• SLEEP function: available in heating and cooling modes for nighttime thermal and acoustic comfort
• Connectivity: integrated Wi‑Fi and management via Smart Life app; BMS‑ready (Modbus RTU, KNX)
• Fixing kit: dowels and screws supplied, suitable for solid walls or perforated bricks
• Maintenance: removable filters, washable or replaceable
• Hydraulic connections available left (SX) or right (DX)
• European warranty

Technology & operation
Patented software and mechanical design coordinate the radiator aesthetics with fan coil functionality to deliver intelligent control and high thermal output in a compact form factor. A by‑pass valve is supplied as standard. The unit is engineered for both heating and cooling applications and optimized for low‑temperature systems.

Downloads available
Product documentation including user manuals and technical datasheets are available for download. 3D drawings and BIM/CAD files provided for different configurations (left/right, various sizes).

Characteristics / Technical specifications

• Denomination: SOFI X
• Function: Ventilated radiator (radiator + fan coil) for heating and cooling
• Operation modes: Heating, Cooling
• SLEEP function: yes (nighttime thermal and acoustic comfort)
• Connectivity: Integrated Wi‑Fi; Smart Life app management; BMS ready (Modbus RTU, KNX)
• Mounting: Fixing kit (dowels and screws) for solid walls or perforated bricks
• Filters: Removable, washable or replaceable
• Hydraulic connections: Left (SX) or Right (DX) available
• Included: By‑pass valve supplied as standard
• Product class: Class 1
• Suitable for: Low‑temperature systems and extremely compact spaces
