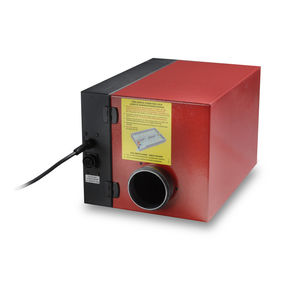

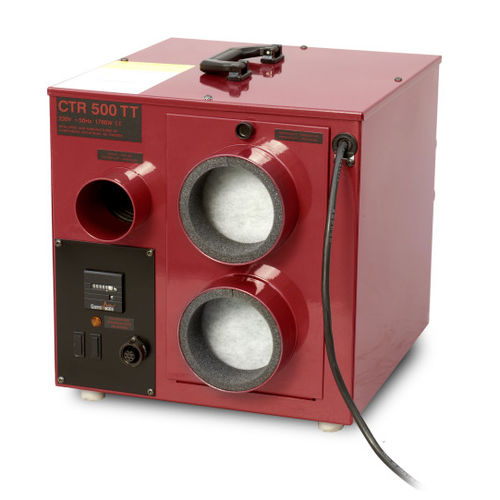

Floor dehumidifier CTR 500TT

residentialcommercial

CTR 500TT is our largest dehumidifier for fixed installation in crawl spaces, with a dry air volume of up to 500 m3/h. The crawl space dehumidifier is a superbly energy efficient machine and has a high capacity in relation to its size. CTR 500TT is specially designed for use in crawl spaces, where the requirements are for robustness, operational safety and long service life. The machine is used in spaces with only damp problems. SOME ADVANTAGES OF CTR 500TT: Designed for foundations up to 350 m3 Effective against damp problems High quality and long service life Energy efficient and has low operating costs TECHNICAL DATA Dry air volume 500 m3/h Wet air volume 60-80 m3/h Process air inlet Ø 2x125 mm Dry air outlet Ø 3x50 mm + 2x100 mm Wet air outlet Ø 75 mm Power supply 230 V / 50 Hz Power consumption 1780 W Real consumption 1500 W Noise level (3 m) 62 dB Weight 21 kg Dimensions (L x W x H) 480 x 385 x 400 mm Dehumidification capacity at: 20°C, 60% RF 35 l/day Dehumidification capacity at: 10°C, 60% RF 24 l/day Dehumidification capacity at: 5°C, 60% RF 21 l/day EASY MONITORING WITH CONTROL PANEL The crawl space dehumidifier is controlled using a hygrostat that is positioned in the crawl space where the conditions are considered appropriate or particularly critical and the drying can be monitored via a control panel inside the residence.
