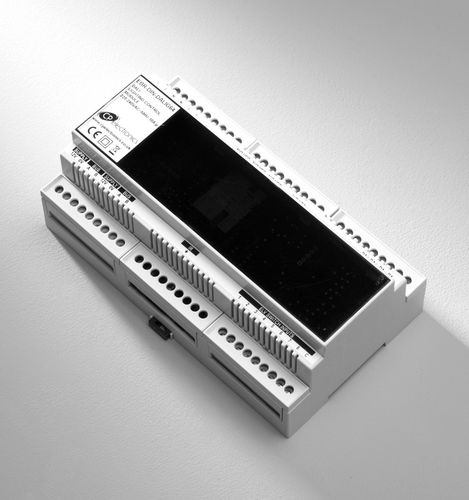

The EBR-DIN-DALIG64 is a RAPID lighting control module designed for controlling 64 addressable DALI devices such as fluorescent or LED lighting ballasts.
The unit incorporates three voltage free relay outputs plus an emergency test relay. This LCM has a total of 8 SELV switch inputs. Used in conjunction with our range of DALI presence detectors a single DALI bus can be run to digitally control all the lighting and power the sensors. This saves time and money on additional specialist cable. It is ideal for chilled beam, continuous run lighting, and core areas.
Patented Energy Measurement Technology
Exclusive to the next generation of RAPID products, our patented Energy Measurement technology allows for actual energy usage data to be obtained for any device on the system, from individual luminaires, to building wide. All the reportable information is logged in a database and available for viewing via a web based reporting suite. The raw data is also available in XML format so that the user can utilise a third party tool for analysis.
