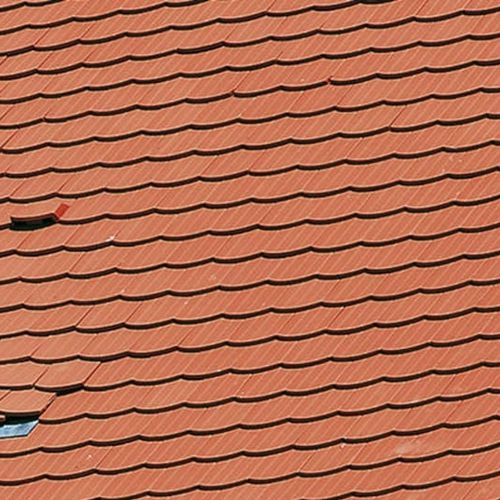

Interlocking roof tile PROFIL SAXONYclaysmallred
Add to favorites
Compare this product
Characteristics
- Shape
- interlocking
- Material
- clay
- Size
- small
- Color
- red, black
- Appearance
- embossed
- Length
380 mm
(15 in)- Width
155 mm, 180 mm
(6 in, 7 in)- Thickness
12 mm, 14 mm
(0 in, 1 in)
Description
The plain tile with the profiled surface.
Max. coverage width (approx.) - 155 mm / 180 mm
Min. gauge (approx.) - 145 mm
Covering length on av. approx. - 155 mm
Max. gauge (approx.) - 165 mm
Average tile requirement (approx.) - 41.6 pcs/m² / 36 pcs/m²
Unit weight (approx.) - 1.6 kg/piece / 1.9 kg/piece
Weight per m² (approx.) - 66.6 kg/m² / 68.4 kg/m²
Weight per pallet (approx.) - 1133 kg / 979 kg
Pcs per mini-pack - 8 piece
Pcs per pallet - 704 piece / 480 piece
