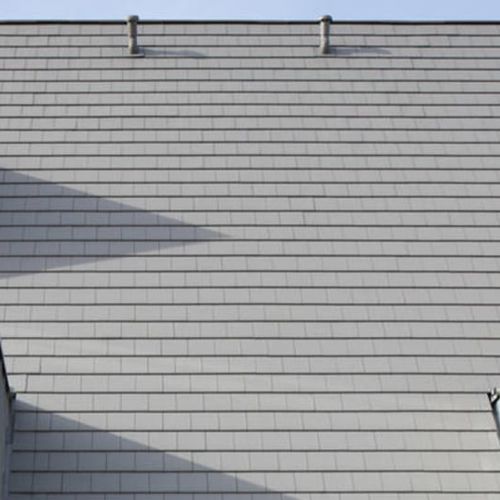

Flat roof tile KAPSTADT

Portugueseconcretedouble

The Linear One Clear modern lines up to the hidden side interlock Double water traps provide extra protection against rain intrusion Deep side interlocking with joint open at the top (requires half offset installation in accordance with Central Association of the German Roofing Trade (ZVDH) guidelines) Solid support strip at the suspension lug to prevent saturation at the roof batten Distinctive bottom ribbing reduces the penetration of drifting snow or driving rain Completely closed lower edge, even in the side interlock area Awarded the TRENDS architecture prize for construction 2013 Covering width min. approx. - 300 mm Covering width on av. approx. - 300 mm Max. coverage width (approx.) - 300 mm Min. gauge (approx.) - 310 mm Covering length on av. approx. - 325 mm Max. gauge (approx.) - 340 mm Tile requirement min. (approx.) - 9.8 pcs/m² Average tile requirement (approx.) - 10.2 pcs/m² Brickware max. approx. - 10.7 pcs/m² Unit weight (approx.) - 4.7 kg/piece Weight per m² (approx.) - 47 kg/m² Pieces per packing unit - 36 piece
