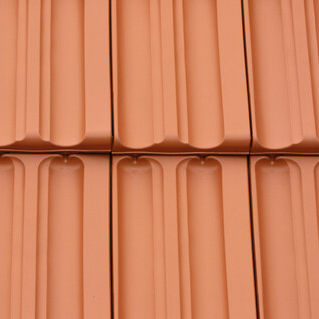

Interlocking roof tile REGIUS

Portuguesedual-channellarge

Tradition meets modernity. Classic technically mature model from the traditional works in Autenried, Bavaria, Germany Extremely versatile and easy to install, with an adjustment range of 21 mm, making it ideal for renovation projects Its large format makes this tile especially cost-effective Support ribs add robustness and channel away any condensed water Labyrinth technology, with five specially-shaped protruding side ribs, prevents rainwater penetration, even in the fiercest storms Can be used either in rows or in a bonded pattern Covering width min. approx. - 254 mm Covering width on av. approx. - 255 mm Max. coverage width (approx.) - 256 mm Min. gauge (approx.) - 392 mm Covering length on av. approx. - 402 mm Max. gauge (approx.) - 412 mm Tile requirement min. (approx.) - 9.3 pcs/m² Average tile requirement (approx.) - 9.6 pcs/m² Brickware max. approx. - 9.9 pcs/m² Unit weight (approx.) - 4.3 kg/piece Weight per m² (approx.) - 40 kg/m² Weight per pallet (approx.) - 975 kg Pcs per mini-pack - 4 piece Pcs per pallet - 224 piece
