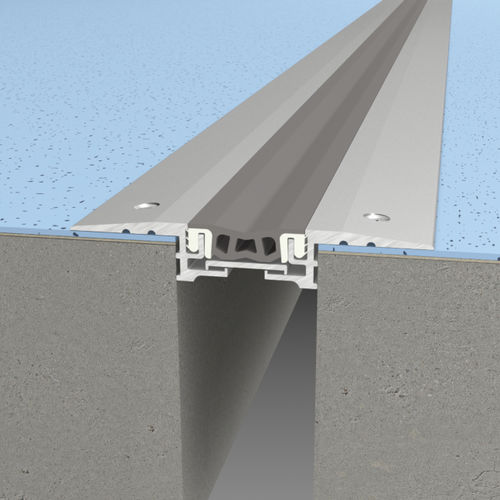

Rubber expansion joint GFS SERIES

thermoplasticaluminumfloors

Available in surface mounted & recess mounted options, gasketed floor joint covers have a minimal exposed surface, with a sealable gasket for infection control, making them perfect for healthcare and hygienic applications. These joints can be used in conjunction with carpets, wooden floors, terrazzo tiles, vinyl, ceramic tiles and stone. Some double gasket models can even incorporate the adjacent floor finish in the centre plate to reduce visual appearance. Easy to install surface mounted floor covers, ideal for retrofit applications and refurbishments. Suitable for interior areas where hygiene is important, and can be installed over a wide range of floor finishes. Joint Width: up to 50mm Horizontal: up to ±10mm Vertical: up to ±3mm Lateral: up to ±3mm Load Capability: 250kg point load Aluminium sections: floor frames have a natural, clear anodised finish. Support frames and wall frames are mill finished as standard. Gaskets: co-extruded Thermoplastic Rubber (TPR) gaskets available in four standard colours. Other colours can be supplied subject to minimum quantity. Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment Wall: fixings (by others) to suit substrate at 450mm centres Aluminium sections: 3m Gaskets: cut to suit from 32m rolls (max)
