Aluminum expansion joint SJP-S SERIES
stainless steelfloorwall

aluminum expansion joint
aluminum expansion joint
Add to favorites
Compare this product


Characteristics

Material
aluminum, stainless steel
Applications
floor, wall, interior

Description

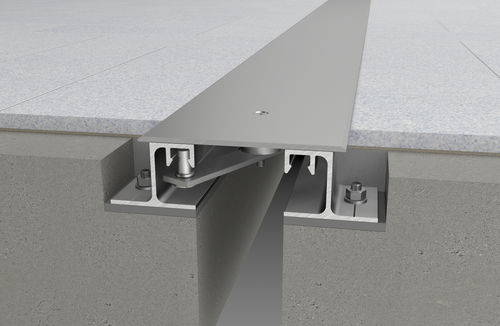

Aluminium recess mounted floor joint covers incorporating a stainless steel cover plate sitting over a standard floor finish. Suitable for interior and exterior applications with wide joint openings and large movement requirements. Joint Width: up to 150mm Horizontal: up to ±100mm Vertical: up to ±2mm Lateral: ∞ (Infinite) Load Capability: 250kg point load Recess mounted aluminium floor joint system with a satin finish stainless steel cover plate sitting over a standard floor finish Suitable for finishes up to 25mm deep (interior or exterior) Bespoke solution, made to order Durable and low maintenance Load capability: 250kg point load Cover plate: supplied in satin finish stainless steel Other sections: supplied in mill finish aluminium Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment NB: To ensure installation flexibility frames are not supplied pre-drilled
