Aluminum expansion joint PC SERIES

stainless steelfloorswall

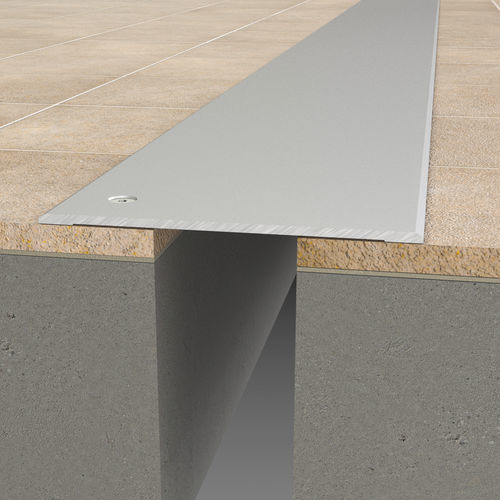

Cover strips for floors are a very simple, economical solution to covering an expansion joint. These types of cover generally just push into the existing joint, or are screwed in on one side of the joint. Our range of economical cover strips can be used on joints of up to 100mm, with a variable movement range depending on the type of cover chosen. A simple, surface mounted aluminium cover plate that sits above the floor finish. Ramped edges help provide a smooth transition for wheeled traffic & minimise the risk of trip hazard. Joint Width: up to 100mm Horizontal: up to +65/-100mm Vertical: up to ±2mm Lateral: ∞ (Infinite) Load Capability: 250kg point load Cover plates are made of aluminium and supplied with a natural anodised finish as standard. Stainless steel options can be provided upon request. Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment Wall: fixings (by others) to suit substrate at 450mm centres NB: To ensure installation flexibility frames are not supplied pre-drilled
