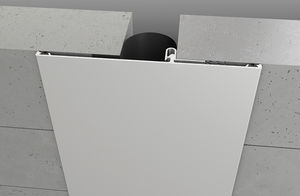

Extruded aluminum joint cover SF SERIES

PVCfor expansion joints

Wall cover systems comprising of a flush Santoprene primary gasket and a secondary PVC gasket positioned in continuous extruded aluminium side frames. Heat welded weather tight transitions are available. Series Details Joint Width: up to 150mm Horizontal: up to +75/-90mm Vertical: up to ±15mm Lateral: up to ±3mm Fixings Fixings (by others) to suit substrate at 450mm centres. Note: frames are not supplied pre-drilled Transitions Heat welded transitions are available, please contact us for details Stock Lengths Aluminium sections: 3m Primary gaskets: supplied cut to suit from [max] 15m rolls Secondary gaskets: supplied cut to suit from [max] 30m rolls
